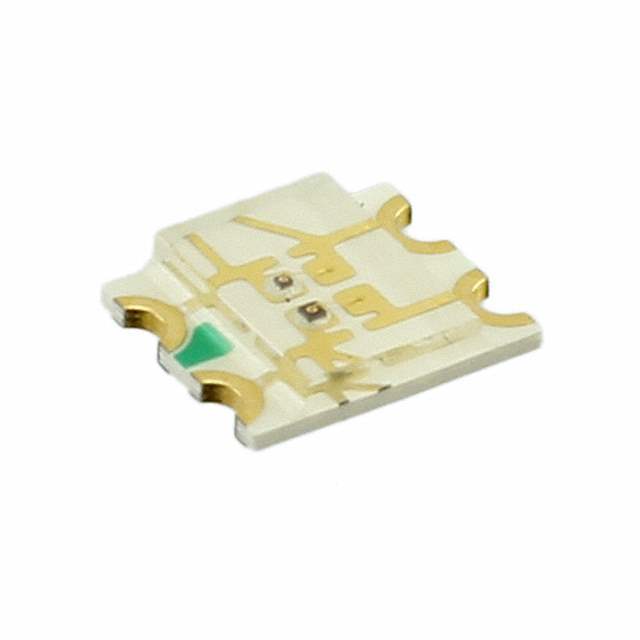

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Dialight
Part Status Active
Color Red, Green, Blue (RGB)
Configuration Common Anode
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 60mcd Red, 120mcd Green, 90mcd Blue
Lens Style Rectangle with Flat Top
Lens Size 2.00mm x 1.30mm
Current - Test 20mA Red, 20mA Green, 20mA Blue
Ultra Librarian 3D Model Ultra Librarian 5988610307F CAD Model

Description

Certifications & Ratings

• RoHS compliant

Features & Benefits

• Compatible with automatic placement equipment

• Packaged in 8mm tape, 7" reel (3000 pcs/reel) and 20 per strip

• Meets EIA-481-1 pkg. std.
