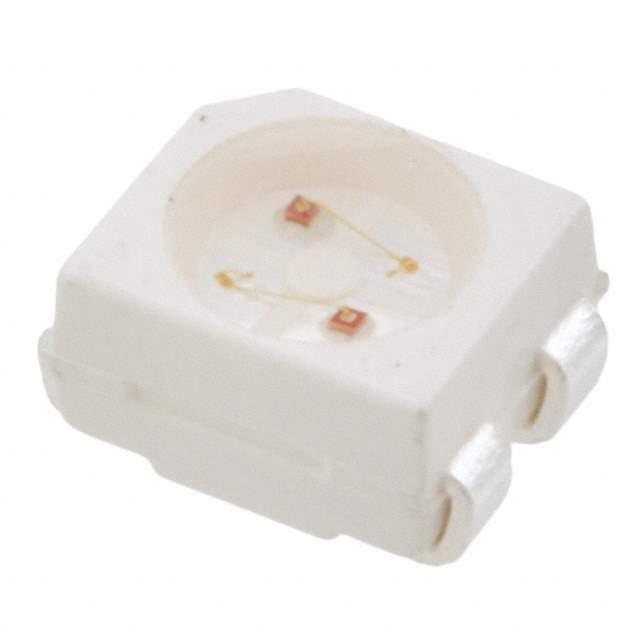

HSMF-A206-A00J1 Real Image
Same model may have multiple batches, images only for reference.

HSMF-A206-A00J1

Part No HSMF-A206-A00J1
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description Surface Mount LED Indicators, PLCC-4 SMT LEDs | LED GREEN/YELLOW CLEAR 4PLCC SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel
Color Green, Yellow
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 20mcd Green, 16mcd Yellow
Lens Style Round with Flat Top
Lens Size 2.20mm Dia
Voltage - Forward (Vf) 2.2V Green, 2.2V Yellow
Current - Test 20mA Green, 20mA Yellow
Viewing Angle 120°
Mounting Style SMD
Wavelength - Dominant 569nm Green, 585nm Yellow
Wavelength - Peak 565nm Green, 583nm Yellow
Manufacturer Package 4-PLCC
Supplier Device Package 4-PLCC
Parts Dimension 3.20mm L x 2.80mm W
Height (Maximum) 2.10mm
Family Part Number HSMF-A2*
Manufacturer Pack Quantity 1
MSL Level 2A (4 Weeks)
Win Source Part Number 1181838-HSMF-A206-A00J1
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HSMF-A206-A00J1 CAD Model

Description

The Broadcom Limited HSMF-A206-A00J1 is an independent configuration, colorless round with flat top lens style LED.

  • Configuration: Independent
  • Lens Style: Colorless round with flat top
  • Viewing Angle: 120 degrees
  • Millicandela Rating (Green): 20mcd
  • Millicandela Rating (Yellow): 16mcd
  • Wavelength-Dominant (Green): 569nm
  • Wavelength-Dominant (Yellow): 585nm
  • Voltage-Forward (Vf): 2.2V
  • Package: 4-PLCC
  • Height: 2.10mm
  • Application: Optoelectronics
