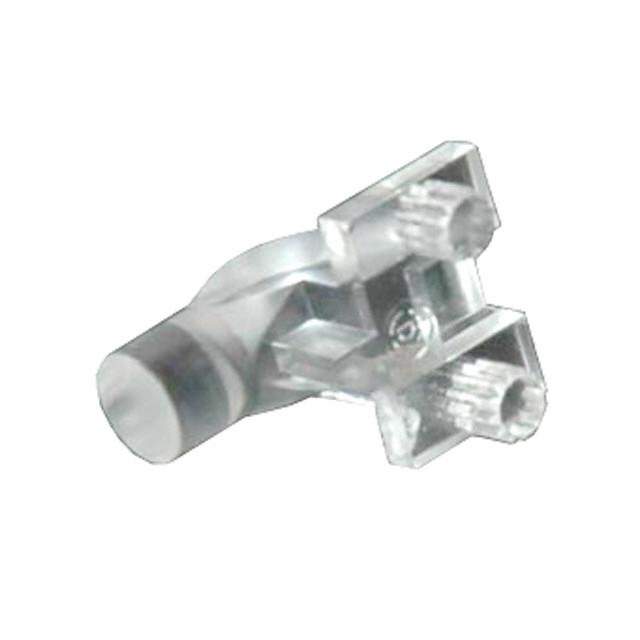

515-1011F Real Image
Same model may have multiple batches, images only for reference.

515-1011F

Part No 515-1011F
Manufacturer Dialight
Catalog Optics - LEDs - Light Pipes
Description 515-1011F; PCB Mounted Right Angle LED Light Pipe; Clear Round Lens
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Clear
Element Configuration Single
Lead Free Yes
Length 14.6 mm
Lens Color Clear
Lens Style Round
Material Polycarbonate
Mount PCB, Press Fit
Number of Columns 1
Number of Rows 1
Orientation Right Angle
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8541402000, 8541402000
Width 14.6 mm
Win Source Part Number 1024286-515-1011F
Categories Optics - LEDs - Light Pipes
Manufacturer Dialight
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 515-1011F CAD Model

Description

The Dialight 1024286-515-1011F is a clear LED light pipe designed for use in optics and LEDs.

  • Configuration: single element
  • Material: polycarbonate
  • Lens Style: round
  • Lens Color: clear
  • Popularity: low
  • Supply and Demand: shortage
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Mounting: PCB, press fit
