Same model may have multiple batches, images only for reference.

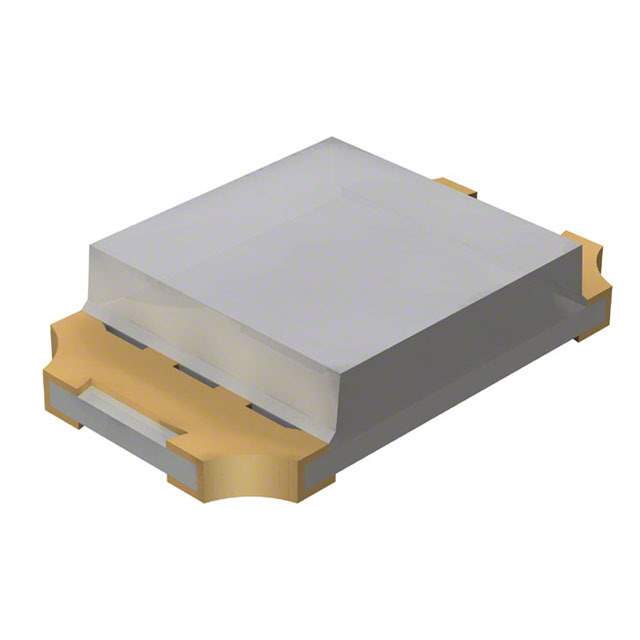

SML-P12WTT86R Real Image
Same model may have multiple batches, images only for reference.

SML-P12WTT86R

Part No SML-P12WTT86R
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED YELLOW CLEAR 1006 SMD / Yellow 585nm LED Indication - Discrete 2.1V 0402 (1006 Metric)
Datasheet
SML-P12WTT86R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Rohm Semiconductor
Series PicoLED™
Package Tape & Reel
Color Yellow
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 70mcd
Lens Style Square with Flat Top
Lens Size 0.60mm
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Mounting SMD (SMT)
Wavelength - Dominant 585nm
Package / Case 0402 (1006 Metric)
Supplier Device Package 1006 (0402)
Dimension 1.00mm L x 0.60mm W
Height (Max) 0.25mm
Base Product Number SML-P12
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names SML-P12WTT86RP,SML-P12WTT86RQ,SML-P12WTT86RR,SML-P12WTT86RS,846-1193-1,846-1193-2,846-1193-6
Standard Package 5,000
Win Source Part Number 1094474-SML-P12WTT86R
Ultra Librarian 3D Model Ultra Librarian SML-P12WTT86R CAD Model

Description

The SML-P12WTT86R is an LED indication electronic component manufactured by Rohm Semiconductor.

  • Series: PicoLED™
  • Color: Yellow
  • Package: Tape and Reel
  • Standard Package: 5,000
  • Mounting Type: SMD (SMT)
  • Configuration: Standard
  • Voltage Forward (Vf) (Typ): 2.1V
  • Current Test: 20mA
  • Wavelength Dominant: 585nm
  • Height (Max): 0.25mm
  • Package/Case: 0402 (1006 Metric)
  • Supplier Device Package: 1006 (0402)
  • Operating Temperature Range: -40°C to 85°C
