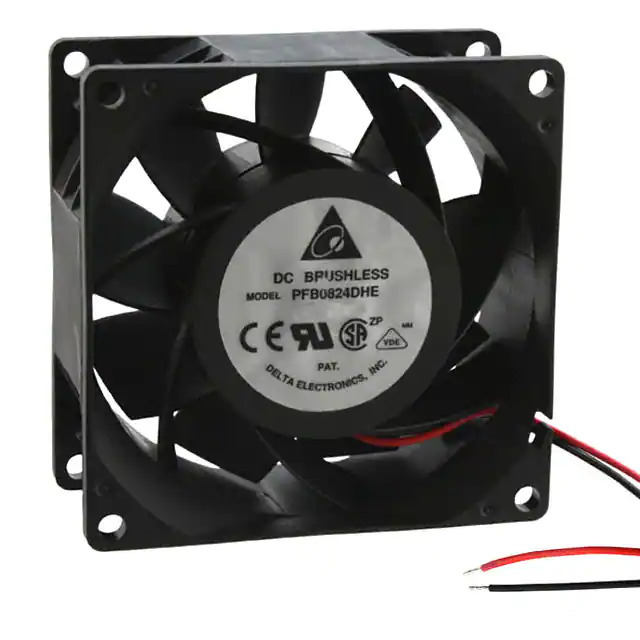

PFB0824DHE Delta Electronics
Same model may have multiple batches, images only for reference.

PFB0824DHE

Part No PFB0824DHE
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 80X38MM 24VDC WIRE
Datasheet
PFB0824DHE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series PFB
Package Bulk
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 80mm L x 80mm H
Width 38.00mm
Air Flow 132.6 CFM (3.71m³/min)
Static Pressure 2.030 in H2O (505.7 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 65.0dB(A)
Power (Watts) 32.4 W
RPM 9000 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 140°F (-10 ~ 60°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.452 lb (205.02 g)
Current Rating (Amps) 1.35A
Voltage Range 14 ~ 26.4VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 50000 Hrs @ 40°C
Base Product Number PFB0824
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368439-PFB0824DHE
Ultra Librarian 3D Model Ultra Librarian PFB0824DHE CAD Model

Description

The 1368439-PFB0824DHE is a DC brushless fan manufactured by Delta Electronics.

  • Series: PFB
  • Rated Voltage: 24VDC
  • Shape: Square
  • Dimensions: 80mm L x 80mm H
  • Lifetime: 50000 hours @ 40°C
  • Current Rating: 1.35A
  • Power Consumption: 32.4W
  • Product Status: Active
  • REACH Compliance: Unaffected
  • Features: Locked Rotor Protection
  • Suitable for: Efficient cooling for electronic devices
