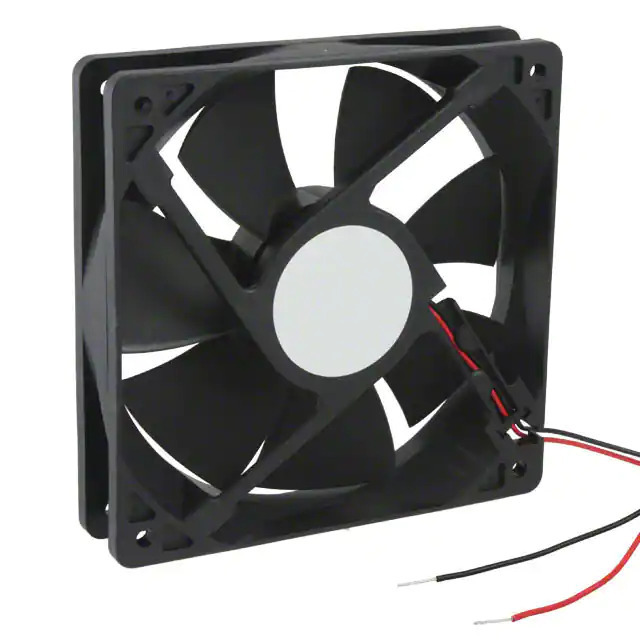

AFB1224VH Delta Electronics
Same model may have multiple batches, images only for reference.

AFB1224VH

Part No AFB1224VH
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 120X25.4MM 24VDC WIRE
Datasheet
AFB1224VH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Bulk
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 120mm L x 120mm H
Width 25.40mm
Air Flow 103.7 CFM (2.90m³/min)
Static Pressure 0.371 in H2O (92.5 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 44.5dB(A)
Power (Watts) 5.52 W
RPM 3100 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 140°F (-10 ~ 60°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.437 lb (198.00 g)
Current Rating (Amps) 0.230A
Voltage Range 14 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB1224
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368435-AFB1224VH
Ultra Librarian 3D Model Ultra Librarian AFB1224VH CAD Model

Description

The AFB1224VH is a DC brushless fan manufactured by Delta Electronics.

  • Series: AFB
  • Voltage Rating: 24VDC
  • Features: Locked Rotor Protection
  • Current Rating: 0.230A
  • Power Consumption: 5.52W
  • Size: 120mm x 120mm
  • Shape: Square
  • Material: Plastic
  • Speed: 3100 RPM
  • Noise Level: 44.5dB(A)
  • Air Flow: 103.7 CFM
  • Approvals: CE, CSA, UL, VDE
  • Suitable for: Fans, Thermal Management, Electronic Devices
