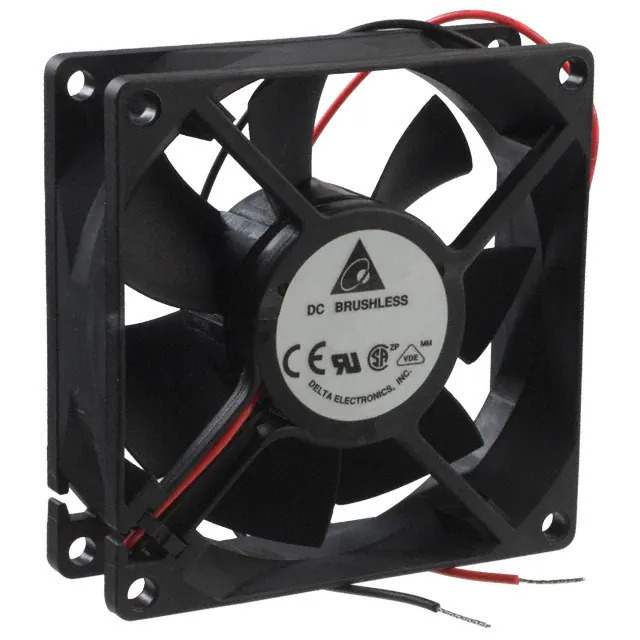

AFB0824VH Delta Electronics
Same model may have multiple batches, images only for reference.

AFB0824VH

Part No AFB0824VH
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 80X25.4MM 24VDC WIRE
Datasheet
AFB0824VH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Bulk
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 80mm L x 80mm H
Width 25.40mm
Air Flow 42.0 CFM (1.18m³/min)
Static Pressure 0.217 in H2O (54.1 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 38.0dB(A)
Power (Watts) 3.36 W
RPM 3600 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.176 lb (80.00 g)
Current Rating (Amps) 0.140A
Voltage Range 14 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0824
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368425-AFB0824VH
Ultra Librarian 3D Model Ultra Librarian AFB0824VH CAD Model

Description

The Delta Electronics AFB0824VH is a DC brushless fan designed for thermal management in electronic devices.

  • Voltage Rating: 24VDC
  • Current Rating: 0.140A
  • Power Output: 3.36W
  • Protection: Locked Rotor Protection
  • Size: 80mm x 80mm
  • Airflow: 42.0 CFM
  • Static Pressure: 0.217 in H2O
  • Noise Level: 38.0dB(A)
  • Maximum Speed: 3600 RPM
  • Approvals: CE, CSA, UL, and VDE
