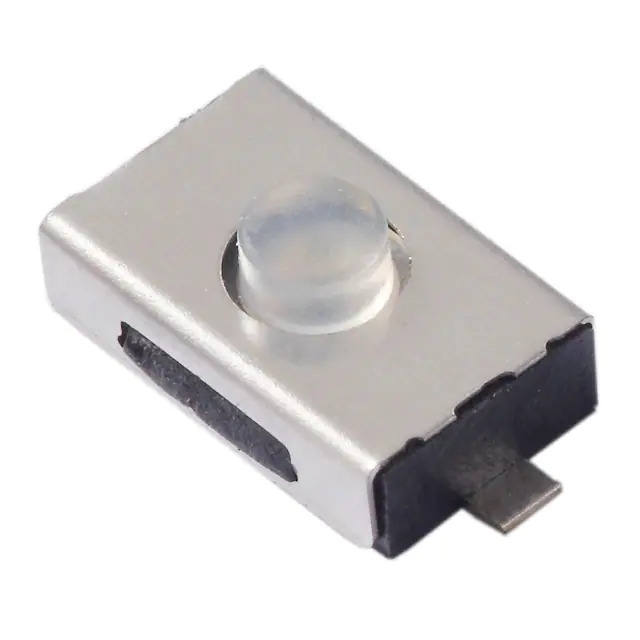

222SMVABR CTS Electrocomponents
Same model may have multiple batches, images only for reference.

222SMVABR

Part No 222SMVABR
Manufacturer CTS Electrocomponents
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 32V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
222SMVABR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr CTS Electrocomponents
Series 222S
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 32VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 2.50mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.00mm x 3.80mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 300gf
Ingress Protection IP57 - Dust Protected, Waterproof
Features Tactile Feedback
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Silicon Rubber
Switch Travel 0.35mm
Mechanical Life 100,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376482-222SMVABR
Ultra Librarian 3D Model Ultra Librarian 222SMVABR CAD Model

Description

The CTS Electrocomponents 222S series tactile switch is a reliable and versatile component for various electronic applications.

  • Temperature Range: -40°C to 85°C
  • Contact Rating: 0.05A @ 32VDC
  • Circuit: SPST-NO
  • Actuator Type: Standard
  • Termination Style: Gull Wing
  • Mounting Type: Surface Mount
  • Actuator Height off PCB: 2.50mm
  • Mechanical Life: 100,000 Cycles
  • Actuator Material: Silicone Rubber
  • Illumination: Non-Illuminated
  • Operating Force: 300gf
  • Protection: Dust Protected and Waterproof
  • Ingress Protection: IP57
