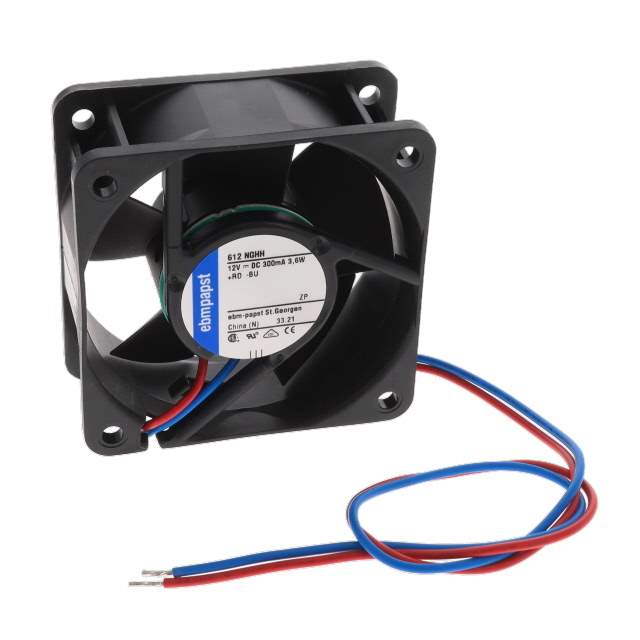

612NGHH Real Image
Same model may have multiple batches, images only for reference.

612NGHH

Part No 612NGHH
Manufacturer ebm-papst
Catalog DC Fans
Description FAN 12VDC 60X25MM  /  Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Sintec 33.0 CFM (0.924m³/min) 2 Wire Leads
Datasheet
612NGHH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr ebm-papst Inc.
Series 600NG
Package Bulk
Voltage - Rated 12VDC
Dimension Square - 60mm L x 60mm H
Width 25.40mm
Air Flow 33.0 CFM (0.924m³/min)
Bearing Type Sintec
Fan Type Tubeaxial
Noise 43.0dB(A)
Power (Watts) 3.8 W
RPM 6850 RPM
Termination 2 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.19 lb (86.18 g)
Current Rating (Amps) 0.255A
Voltage Range 8 ~ 13.2VDC
Material - Frame Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Blade Polyamide (PA), Nylon, Fiberglass Reinforced
Lifetime @ Temp. 60000 Hrs @ 40°C
Base Product Number 612N
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Other Names 381-2685
Standard Package 45
Win Source Part Number 1027100-612NGHH
Ultra Librarian 3D Model Ultra Librarian 612NGHH CAD Model

Description

The 1027100-612NGHH is a DC brushless fan from the 600NG series of fans and thermal management components.

  • Package: bulk
  • Standard Package: 45
  • Voltage Rating: 12VDC
  • Power Rating: 3.8W
  • Lifetime: 60000 hours @ 40°C
  • Weight: 0.19 lb (86.18 g)
  • Voltage Range: 8V to 13.2VDC
  • Air Flow: 33.0 CFM (0.924m³/min)
  • Noise Rating: 43.0dB(A)
  • RPM: 6850 RPM
  • Fan Type: tubeaxial
  • Bearing Type: Sintec
  • Dimension: 60mm L x 60mm H
  • Frame: Polybutylene Terephthalate (PBT), Fiberglass Reinforced
  • Blade: Polyamide (PA), Nylon, Fiberglass Reinforced
  • Operating Temperature: -4°F to 158°F (-20°C to 70°C)
  • Alternative Parts: 622HH, 622H, 712F, PMD1206PTB1-A.(2).U.GN, 2410ML-04W-B50-B00, PE60251B3-000U-A99612 NGHH, and 612NGHH
