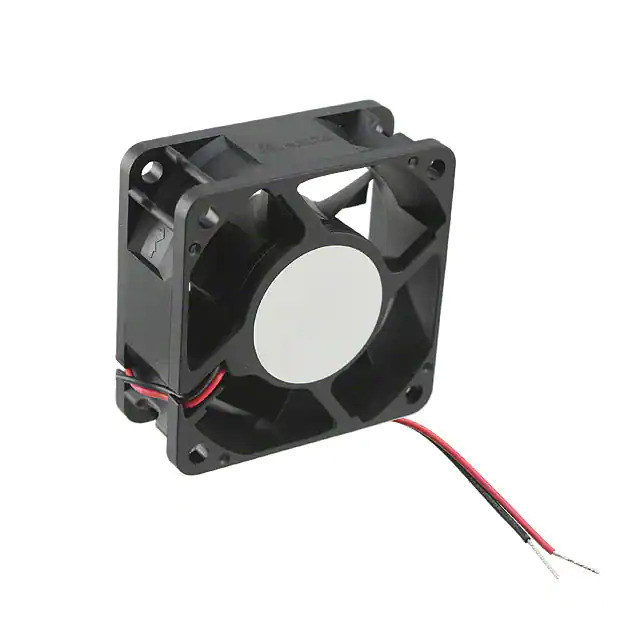

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Bulk
Product Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 60mm L x 60mm H
Width 25.40mm
Air Flow 38.4 CFM (1.08m³/min)
Static Pressure 0.544 in H2O (135.5 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 46.5dB(A)
Power (Watts) 4.56 W
RPM 6800 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.176 lb (80.00 g)
Current Rating (Amps) 0.380A
Voltage Range 4 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0612
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368459-AFB0612EH-A
Ultra Librarian 3D Model Ultra Librarian AFB0612EH-A CAD Model

Description

The Delta Electronics AFB0612EH-A is a DC brushless fan designed for thermal management in electronic devices.

  • Voltage Rating: 12VDC
  • Current Rating: 0.380A
  • Power Output: 4.56W
  • Feature: Locked rotor protection
  • Size: 60mm x 60mm
  • Airflow: 38.4 CFM
  • Static Pressure: 0.544 in H2O
  • Noise Level: 46.5dB(A)
  • Maximum Speed: 6800 RPM
  • Frame Material: Plastic
  • Blade Material: Plastic
  • Approvals: CE, CSA, UL, and VDE
  • Series: AFB series by Delta Electronics
  • Suitable for: Reliable cooling performance for various electronic applications
