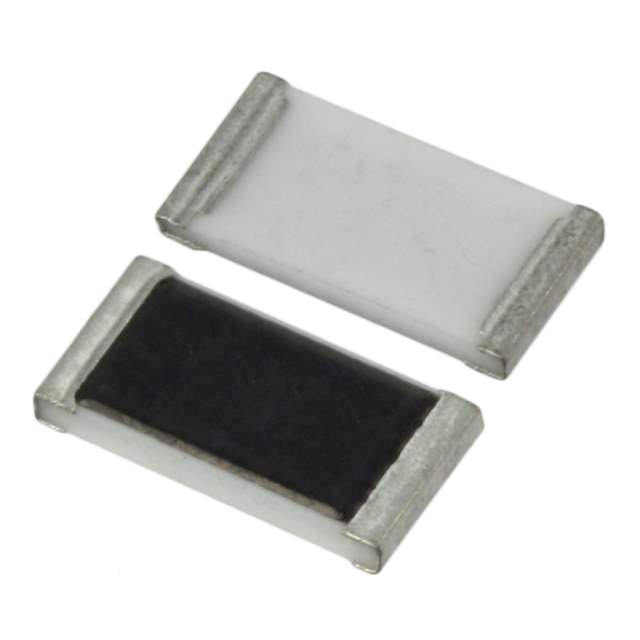

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series RPC
Package Tape & Reel
Resistance 33 Ohms
Tolerance ±5%
Power (Watts) 0.75W, 3/4W
Composition Thick Film
Features Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.122" L x 0.061" W (3.10mm x 1.55mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1337320-RPC1206JT33R0-UP
Ultra Librarian 3D Model Ultra Librarian RPC1206JT33R0-UP CAD Model

Description

The RPC1206JT33R0-UP is a chip resistor designed by Stackpole Electronics Inc.

  • Resistance: 33 Ohms
  • Tolerance: ±5%
  • Power (Watts): 0.75W
  • Composition: Thick Film
  • Features: AEC-Q200
  • Temperature Coefficient: ±200ppm/°C
  • Operating Temperature: -55°C ~ 155°C
  • Package / Case: 1206 (3216 Metric)
