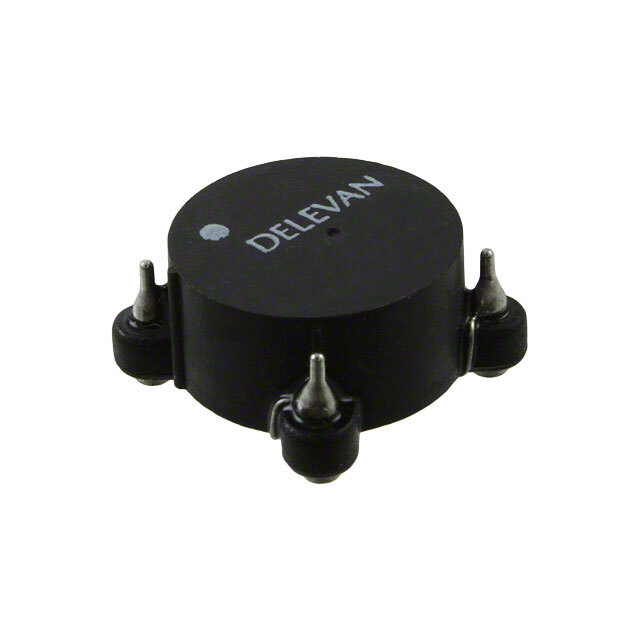

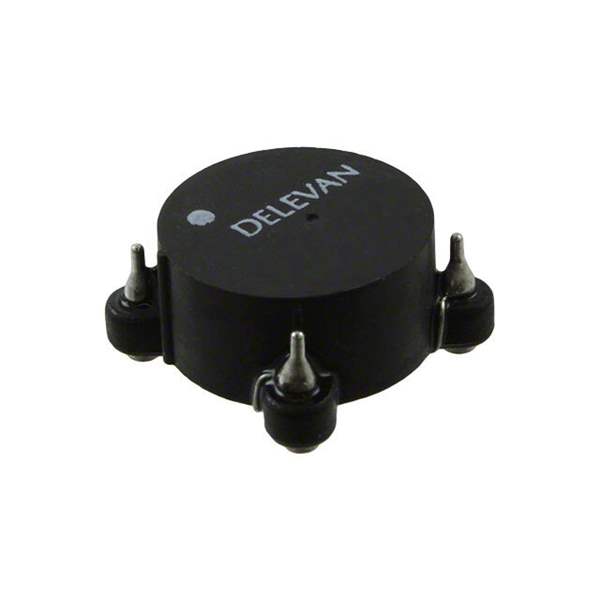

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Number of Lines 2
Inductance @ Frequency 470 µH @ 10 kHz
Current Rating (Max) 600mA
DC Resistance (DCR) (Max) 125mOhm
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Surface Mount
Size / Dimension 0.285" L x 0.285" W (7.24mm x 7.24mm)
Height (Max) 0.210" (5.33mm)
Case / Package Horizontal, 4 PC Pad
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1530448-CM6149-474
Ultra Librarian 3D Model Ultra Librarian CM6149-474 CAD Model
