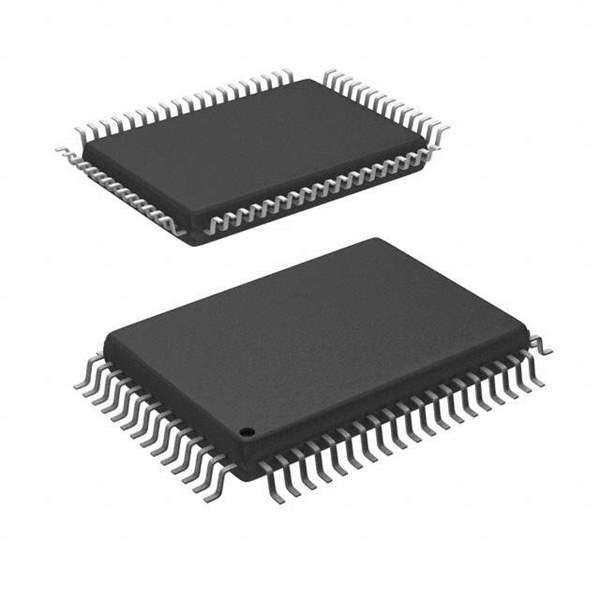

MB89538APFM-G-1124E1 Real Image
Same model may have multiple batches, images only for reference.

MB89538APFM-G-1124E1

Part No MB89538APFM-G-1124E1
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 48KB MROM 64QFP / F²MC-8L series Microcontroller IC 8-Bit 12.5MHz 48KB (48K x 8) Mask ROM 64-QFP (14x20)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Cypress Semiconductor Corp
Series F2MC-8L MB89530A
Package Tray
Product Status Obsolete
Core Processor F2MC-8L
Core Size 8-Bit
Speed 12.5MHz
Connectivity I2C, Serial I/O, UART/USART
Peripherals POR, PWM, WDT
Number of I/O 38
Program Memory Size 48KB (48K x 8)
Program Memory Type Mask ROM
RAM Size 2K x 8
Supply Voltage - Operating 2.2V ~ 5.5V
Data Converters A/D 8x10b
Oscillator Type External
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 64-BQFP
Supplier Device Package 64-QFP (14x20)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN OBSOLETE
HTSUS 0000.00.0000
Standard Package 1
Win Source Part Number 1076163-MB89538APFM-G-1124E1
Ultra Librarian 3D Model Ultra Librarian MB89538APFM-G-1124E1 CAD Model

Description

The MB89538APFM-G-1124E1 is an embedded microcontroller IC from Cypress Semiconductor Corp.

  • Series: F2MC-8L MB89530A series
  • Core Processor: F2MC-8L
  • Speed: 12.5MHz
  • Packaging: Tray
  • Package Size: 64-BQFP
  • Mounting: SMD (SMT)
  • Core Size: 8-bit
  • Connectivity: I2C, Serial I/O, UART/USART
  • Peripherals: POR, PWM, WDT
  • Program Memory Size: 48KB (48K x 8) Mask ROM
  • Data Converters: A/D 8x10b
  • Oscillator Type: External
  • Supply Voltage: 2.2V ~ 5.5V
  • Status: Obsolete
  • ECCN: OBSOLETE
  • HTSUS: 0000.00.0000
