The CY7C1360C-166AJXC is a high-performance synchronous pipelined burst SRAM (Static Random-Access Memory) manufactured by Cypress Semiconductor Corp. It's designed for applications requiring high bandwidth and fast access times. The 166 MHz clock speed makes it suitable for demanding data processing tasks.

Applications

• Networking: Routers, switches, and other network devices use it for packet buffering and forwarding.
• Telecommunications: Wireless base stations and other telecom equipment rely on its speed for data transmission.
• Test and Measurement: Logic analyzers, oscilloscopes, and other test equipment utilize it for high-speed data capture.
• Imaging and Video Processing: Used in frame buffers and other video processing applications.
• High-Performance Computing: Cache memory for processors and other computationally intensive applications.

Features

• High-speed: Operates at 166 MHz clock frequency.
• Synchronous Pipelined Burst: Enables high data throughput.
• 3.3V Power Supply: Designed for systems operating at 3.3 volts.
• JEDEC Standard Pinout: Simplifies board layout and design.
• Byte Write Enable: Allows for selective writing of data bytes.

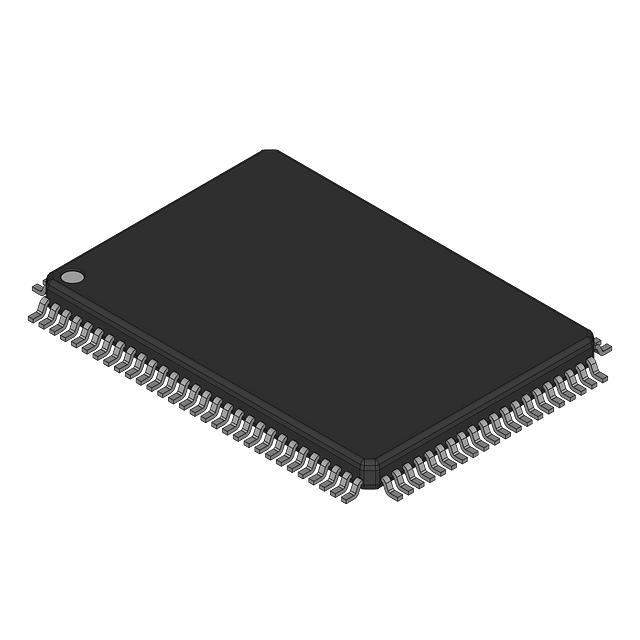

• Available in TQFP Package: Offers a compact footprint and good thermal performance.

Benefits

• Increased System Performance: Fast clock speed and burst architecture boost overall system performance.
• Reduced Latency: Synchronous operation minimizes latency in data access.
• Simplified Design: Standard pinout simplifies board layout and reduces development time.
• Flexible Write Operations: Byte write enable provides flexibility in data manipulation.
• Cost-Effective Solution: Offers a balance of performance and cost.

Additional Details

The CY7C1360C-166AJXC utilizes a burst counter to streamline data transfers. Its synchronous design synchronizes all data transfers to the clock signal, providing predictable timing and enhanced system reliability. Refer to the Cypress datasheet for detailed electrical characteristics, timing diagrams, and package dimensions. The TQFP package offers a good balance between size and thermal performance, making it suitable for a variety of applications.
