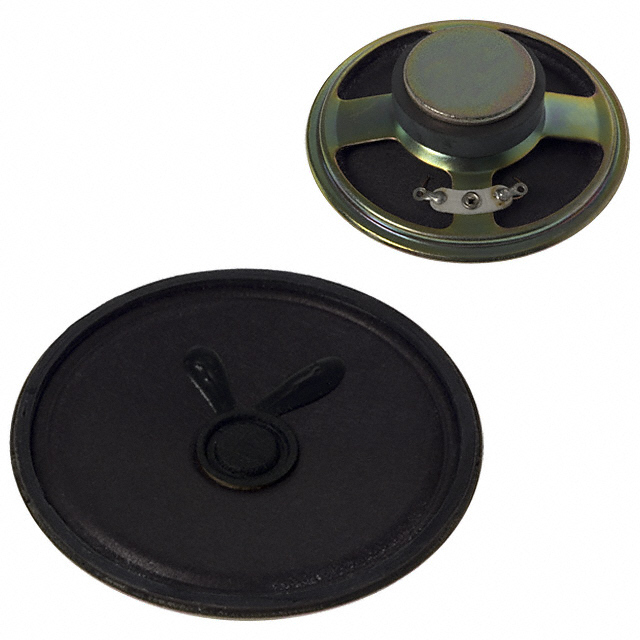

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Technology Magnetic
Type General Purpose
Frequency Range 192 Hz ~ 7 kHz
Frequency - Self Resonant 270Hz
Impedance 8 Ohms
Efficiency - dBA 92.00
Efficiency - Testing 1W/500mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 1 W
Power - Max 2 W
Port Location Top
Shape Round, Square Frame
Material - Cone Paper
Material - Magnet Alnico (AlNiCo)
Termination Solder Eyelet(s)
Size / Dimension 3.032" L x 3.032" W (77.00mm x 77.00mm)
Height - Seated (Max) 0.984\
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1547288-GA0776
Ultra Librarian 3D Model Ultra Librarian GA0776 CAD Model
