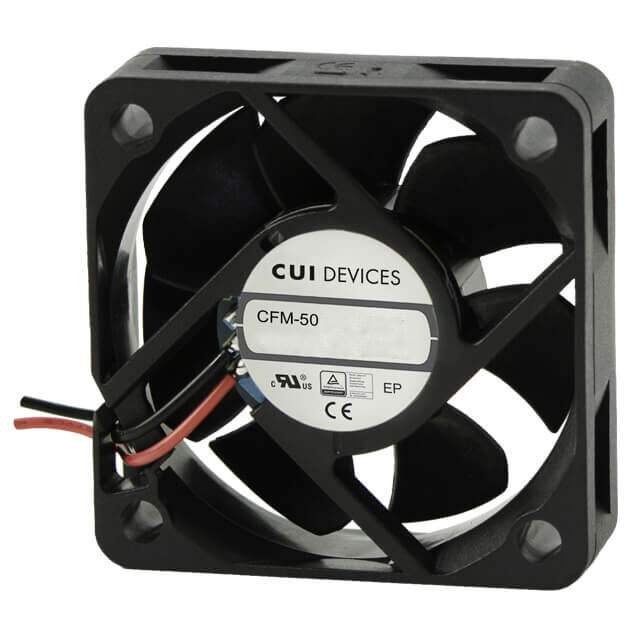

CFM-5015V-247-290-20 Real Image
Same model may have multiple batches, images only for reference.

CFM-5015V-247-290-20

Part No CFM-5015V-247-290-20
Manufacturer CUI Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 50X15MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 50mm L x 50mm H omniCOOL™ Magnetic Sleeve 13.0 CFM (0.364m³/min) 3 Wire Leads
Datasheet
CFM-5015V-247-290-20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr CUI Devices
Series CFM-50V
Package Tray
Voltage - Rated 24VDC
Size / Dimension Square - 50mm L x 50mm H
Width 15.00mm
Air Flow 13.0 CFM (0.364m³/min)
Static Pressure 0.170 in H2O (42.3 Pa)
Bearing Type omniCOOL™ Magnetic Sleeve
Fan Type Tubeaxial
Features Auto Restart, Speed Sensor (Tach)
Noise 29.0dB(A)
Power (Watts) 0.82 mW
RPM 5000 RPM
Termination 3 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, cURus, TUV
Weight 0.083 lb (37.65 g)
Current Rating (Amps) 0.034A
Voltage Range 8 ~ 27.6VDC
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number CFM-5015
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1350011-CFM-5015V-247-290-20
Ultra Librarian 3D Model Ultra Librarian CFM-5015V-247-290-20 CAD Model

Description

The CFM-50V series DC brushless fan from CUI Devices is designed to provide efficient cooling for a wide range of electronic devices.

  • Voltage Rating: 24VDC
  • Power Rating: 0.82 mW
  • Size: 50mm x 50mm
  • Width: 15.00mm
  • Air Flow: 13.0 CFM
  • Static Pressure: 0.170 in H2O
  • Bearing Type: omniCOOL™ magnetic sleeve
  • Noise Level: 29.0dB(A) @ 5000 RPM
  • Package: tray
  • Standard Package: 200 units
  • Approvals: CE, cURus, and TUV
