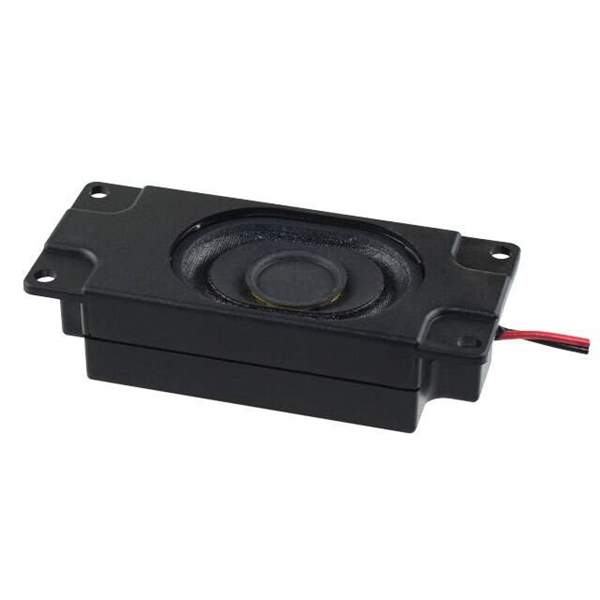

CES-703116-28PM Real Image
Same model may have multiple batches, images only for reference.

CES-703116-28PM

Part No CES-703116-28PM
Manufacturer CUI Inc.
Catalog Speakers
Description SPEAKER 70 X 31MM ENCLOSED / 8 Ohms General Purpose, Enclosure Included Speaker 2 W 710 Hz ~ 20 kHz Top Rectangular
Datasheet
CES-703116-28PM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Speakers
Mfr CUI Devices
Series CES
Package Bag
Technology Magnetic
Type General Purpose, Enclosure Included
Frequency Range 710 Hz ~ 20 kHz
Frequency - Self Resonant 710Hz
Impedance 8 Ohms
Efficiency - dBA 102.00
Efficiency - Testing 2W/100mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 2 W
Power - Max 3 W
Port Location Top
Shape Rectangular
Material - Cone Paper/Cloth
Material - Magnet Nd-Fe-B
Termination Wire Leads
Dimension 2.756" L x 1.220" W (70.00mm x 31.00mm)
Height - Seated (Max) 0.650" (16.50mm)
Temperature Range - Operating -20°C ~ 60°C
Distortion Rating 10% Max @ 2KHz, 0.1M, 2W
Base Product Number CES-703116
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8518.21.0000
Other Names 2223-CES-703116-28PM
Standard Package 80
Win Source Part Number 1123995-CES-703116-28PM
Ultra Librarian 3D Model Ultra Librarian CES-703116-28PM CAD Model

Description

The CES-703116-28PM is a rectangular-shaped general-purpose speaker designed for audio applications.

  • Impedance: 8 Ohms
  • Frequency Range: 710 Hz ~ 20 kHz
  • Power Rating: 2W
  • Maximum Power: 3W
  • Cone Material: paper/cloth
  • Magnet Material: Nd-Fe-B
  • Efficiency: 102.00 dBA
  • Distortion: 10% Max @ 2KHz, 0.1M, 2W
  • Height: 0.650" (16.50mm)
  • Mounting: wire leads
  • Operating Temperature: -20°C ~ 60°C
