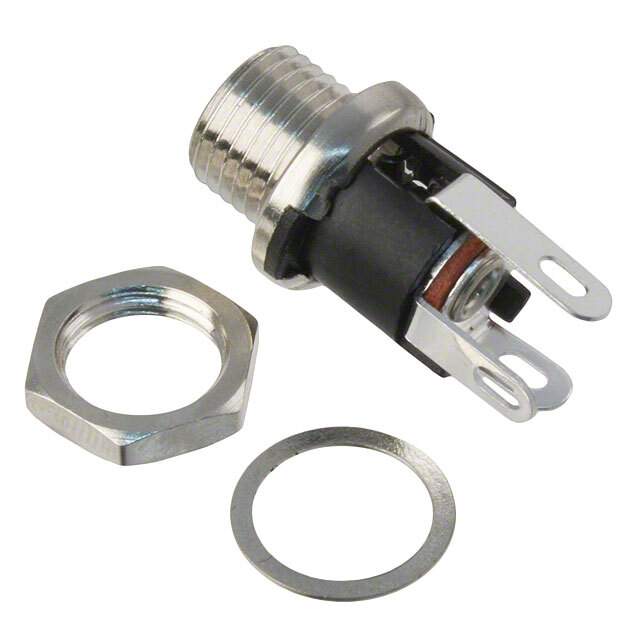

The CUI Devices PJ-005A is a male jack connector with 2 conductors and 3 contacts.

• Conductors: 2
• Contacts: 3
• Connector Type: Male jack
• Voltage Rating: 24VDC
• Current Rating: 5A
• Contact Material: Brass
• Contact Plating: Silver
• Application: Power connectors
• Package: Bag with mounting hardware, thread lock, and 3 pieces (1 connector, 1 nut, and 1 washer)
• Mounting: Through hole or panel mount
• Mounting Feature: Bulkhead - front side nut
• Mating Diameter: 2.00mm ID (0.079") and 5.50mm OD (0.217")
• Shielded: Unshielded
• Housing Material: Polybutylene terephthalate (PBT)
• Material Flammability: UL94 V-0
• Mating Length: 0.354" (9.00mm)
• Actual Diameter: 0.079" (2.00mm ID) and 0.224" (5.70mm OD)
• RoHS3 Compliant: Yes
• REACH: Unaffected
