Same model may have multiple batches, images only for reference.

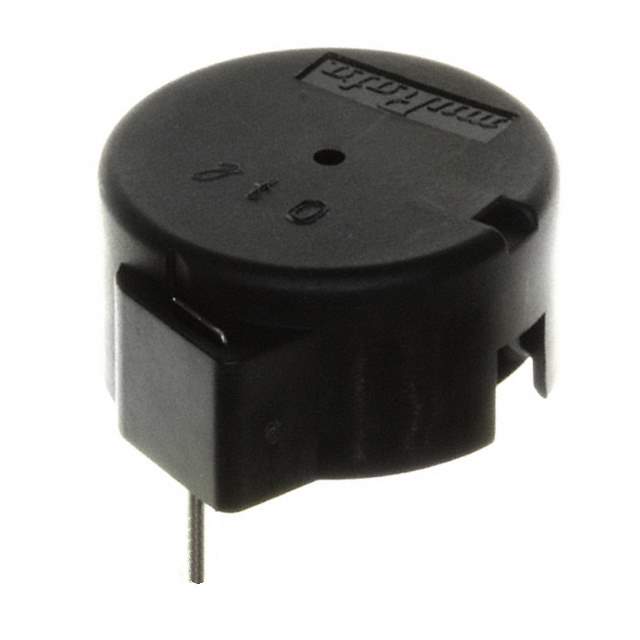

PKM22EPH2001 Real Image
Same model may have multiple batches, images only for reference.

PKM22EPH2001

Part No PKM22EPH2001
Manufacturer Murata Electronics North America
Catalog Speakers
Description BUZZER PIEZO 1.5V 22MM TH / Buzzers Transducer, Externally Driven Piezo 1.5 V 2kHz 75dB @ 1.5V, 10cm Through Hole PC Pins
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Alarms, Buzzers, and Sirens
Mfr Murata Electronics
Series PK
Package Bulk
Product Status Last Time Buy
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage - Rated 1.5 V
Voltage Range 25V (Max)
Frequency 2kHz
Technology Piezo
Operating Mode Ringer
Sound Pressure Level (SPL) 75dB @ 1.5V, 10cm
Port Location Top
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Through Hole
Termination PC Pins
Dimension 0.866" Dia (22.00mm)
Height - Seated (Max) 0.453" (11.50mm)
Base Product Number PKM22EPH
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8531.80.9041
Other Names 490-4690
Standard Package 360
Win Source Part Number 991477-PKM22EPH2001
Ultra Librarian 3D Model Ultra Librarian PKM22EPH2001 CAD Model

Description

The PKM22EPH2001 is a piezo audio product manufactured by Murata Electronics.

  • Series: PK
  • Voltage Rating: 1.5 V
  • Frequency: 2kHz
  • Sound Pressure Level (SPL): 75dB @ 1.5V, 10cm
  • Termination: PC pins
  • Package: Bulk
  • Seated Height: 0.453" (11.50mm)
  • Standard Package: 360
  • Input Type: Zero-peak signal
  • Product Type: Ringer
  • Voltage Range: 25V (Max)
  • Port Location: Top
  • Driver Circuitry: Transducer, externally driven
  • Operating Temperature: -20°C to 70°C
  • Status: Last time buy
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8531.80.9041
