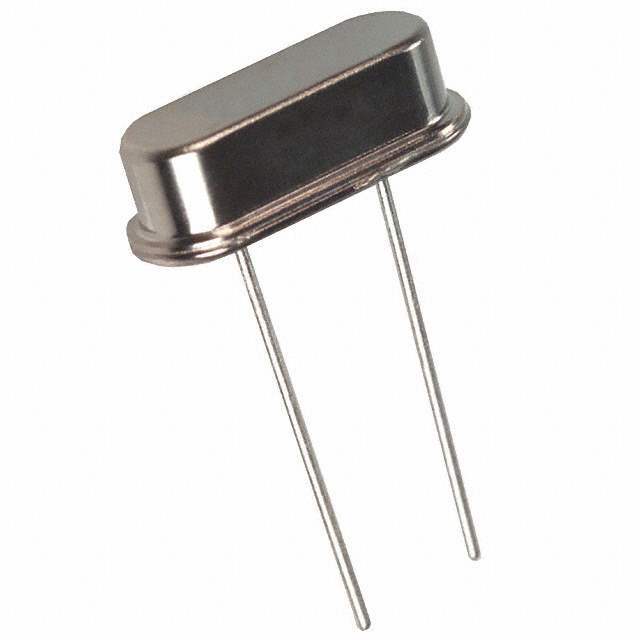

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1204638-ATS100B-E
Manufacturer CTS-Frequency Controls
Category Crystals, Oscillators, Resonators -Crystals
Series ATS
Package Bulk
Product Status Active
Type MHz Crystal
Frequency Frequency
Frequency Stability ±50ppm
Mounting Type Through Hole
Package / Case HC-49/US
Ultra Librarian 3D Model Ultra Librarian ATS100B-E CAD Model

Description

CTS ATS and ATS-SM incorporates a high Q quartz resonator in a proven resistance-weld metal package. They are ideal for supporting a wide range of commercial and industrial applications.
