Same model may have multiple batches, images only for reference.

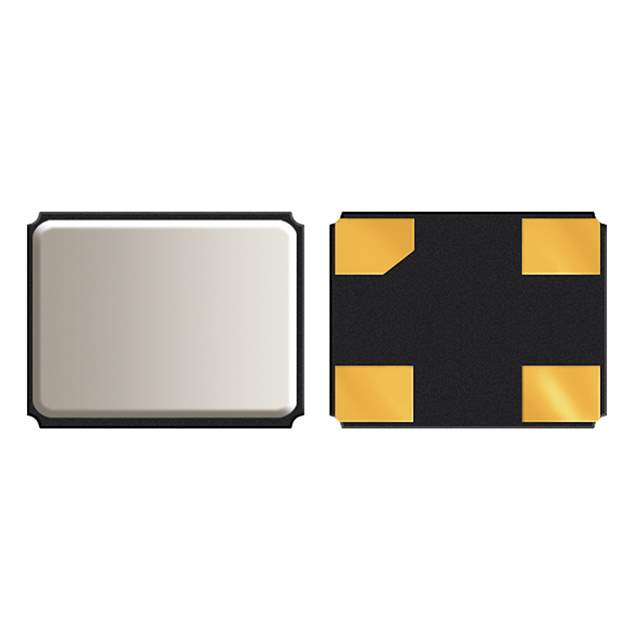

ABM10-16.3676MHZ-E20-T Real Image
Same model may have multiple batches, images only for reference.

ABM10-16.3676MHZ-E20-T

Part No ABM10-16.3676MHZ-E20-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 16.3676MHZ 10PF SMD / 16.3676 MHz ±20ppm Crystal 10pF 150 Ohms 4-SMD, No Lead
Datasheet
ABM10-16.3676MHZ-E20-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM10
Package Tape & Reel
Type MHz Crystal
Frequency 16.3676 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 150 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.028" (0.70mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 535-9811-6,535-9811-1,535-9811-2,ABM10163676MHZE20T
Standard Package 1,000
Win Source Part Number 1034863-ABM10-16.3676MHZ-E20-T
Ultra Librarian 3D Model Ultra Librarian ABM10-16.3676MHZ-E20-T CAD Model

Description

The ABM10 series crystals are designed to provide high-performance frequency stability in a compact package.

  • Crystal: ABM10163676MHZE20T
  • Frequency: 16.3676 MHz
  • Frequency Stability: ±20ppm
  • Load Capacitance: 10pF
  • Mounting Technology: SMD (SMT)
  • Height: 0.028" (0.70mm)
  • Package: 4-SMD, No Lead
  • Operating Temperature Range: -20°C to 70°C
