Same model may have multiple batches, images only for reference.

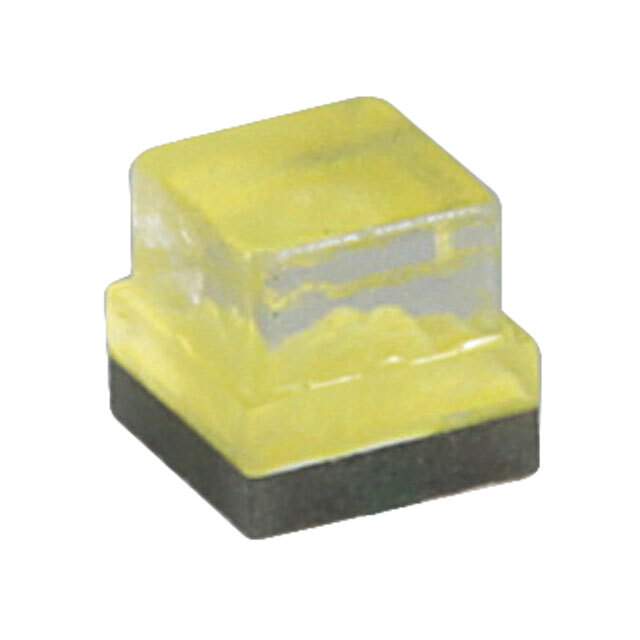

XQBAWT-00-0000-00000HXE5 Real Image
Same model may have multiple batches, images only for reference.

XQBAWT-00-0000-00000HXE5

Part No XQBAWT-00-0000-00000HXE5
Manufacturer CreeLED, Inc.
Catalog LED Lighting - White
Description LED XLAMP NEUTRAL WHT 4000K 0606 / LED Lighting series White, Neutral 4000K 3V 80mA 140° 0606 (1616 Metric)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr CreeLED, Inc.
Series XLamp® XQ-B
Package Tape & Reel
Product Status Obsolete
Color White, Neutral
CCT (K) 4000K
Flux @ 25°C, Current - Test 29lm (27lm ~ 31lm)
Current - Test 80mA
Voltage - Forward (Vf) (Typ) 3V
Lumens/Watt @ Current - Test 121 lm/W
CRI (Color Rendering Index) 80
Current - Max 300mA
Viewing Angle 140°
Mounting SMD (SMT)
Package / Case 0606 (1616 Metric)
Supplier Device Package SMD
Dimension 0.063" L x 0.063" W (1.60mm x 1.60mm)
Height - Seated (Max) 0.065" (1.65mm)
Thermal Resistance of Package 17°C/W
Base Product Number XQBAWT-00
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names XQBAWT-00-0000-00000HXE5DKR,XQBAWT-00-0000-00000HXE5CT,XQBAWT-00-0000-00000HXE5TR
Standard Package 2,000
Win Source Part Number 1105927-XQBAWT-00-0000-00000HXE5
Ultra Librarian 3D Model Ultra Librarian XQBAWT-00-0000-00000HXE5 CAD Model

Description

The XLamp® XQ-B is a white and neutral LED lighting component that is designed for SMD (SMT) mounting.

  • Maximum Current: 300mA
  • Viewing Angle: 140°
  • Typical Forward Voltage: 3V
  • Color Rendering Index: 80
  • Thermal Resistance: 17°C/W
  • Luminous Flux: 29lm (27lm ~ 31lm) @ 25°C
  • CCT: 4000K
  • Package: 0606 (1616 Metric)
  • Height: 0.065" (1.65mm)
  • Status: now obsolete
  • Alternative Parts: XQBAWT-02-0000-00000HXE7, XHGAWT-00-0000-00000BXE7, XHBAWT-00-0000-00000BXE1, VAOL-S2WR4, VAOL-5GWY4, and VAOL-3GWY4XQBAWT-00-0000-00000HXE5
