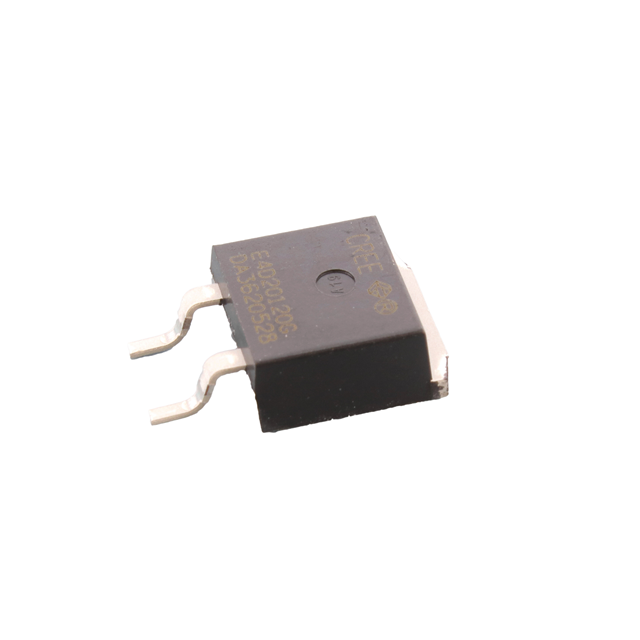

E4D20120G Real Image
Same model may have multiple batches, images only for reference.

E4D20120G

Part No E4D20120G
Manufacturer Cree/Wolfspeed
Catalog Diodes, Rectifiers - Single
Description 1200 V 20 A SCHOTTKY DIODE (SING  /  Diode Silicon Carbide Schottky 1200 V 56A (DC) Surface Mount TO-263-2
Datasheet
E4D20120G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Wolfspeed, Inc.
Series E-Series, Automotive
Package Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 56A (DC)
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 20 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 200 µA @ 200 µA
Capacitance @ Vr, F 1474pF @ 0V, 1MHz
Mounting SMD (SMT)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263-2
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number E4D20120
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 1697-E4D20120G
Standard Package 50
Win Source Part Number 1056673-E4D20120G
Ultra Librarian 3D Model Ultra Librarian E4D20120G CAD Model

Description

The Wolfspeed E4D20120G is a silicon carbide Schottky diode that belongs to the E-Series, Automotive category.

  • Series: E-Series, Automotive
  • Recovery Time: No recovery
  • Package: Tube
  • Mounting: SMD (SMT)
  • Voltage Rating: 1200V
  • Average Rectified Current: 56A (DC)
  • Reverse Recovery Time: 0ns
  • Capacitance: 1474pF @ 0V, 1MHz
  • Operating Temperature: -55°C to 175°C
  • ECCN: EAR99
  • HTSUS: 8541.10.0080
