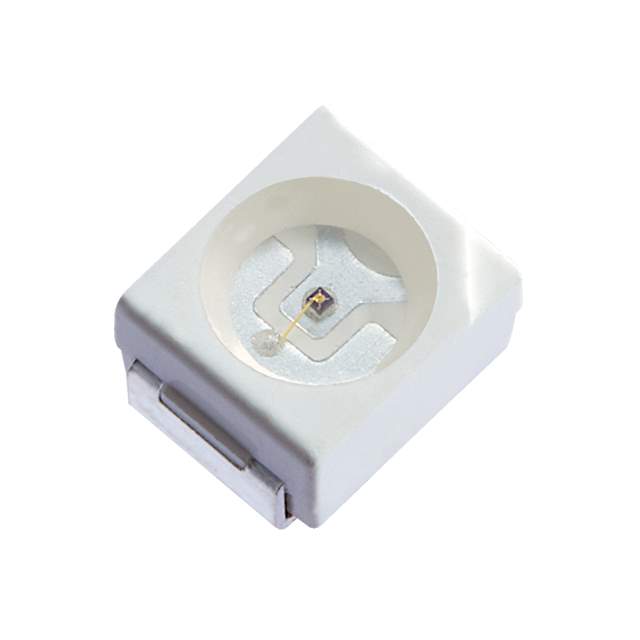

AA3528CGCK Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Color Green
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 100mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 570nm
Wavelength - Peak 574nm
Package / Case 2-PLCC
Dimension 3.20mm L x 2.80mm W
Height (Max) 2.10mm
Base Product Number AA3528
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-2067-6,754-2067-2,754-2067-1
Standard Package 2,000
Win Source Part Number 963898-AA3528CGCK
Ultra Librarian 3D Model Ultra Librarian AA3528CGCK CAD Model

Description

The Kingbright 963898-AA3528CGCK is a green LED with a viewing angle of 120°.

  • Viewing Angle: 120°
  • Millicandela Rating: 100mcd
  • Voltage - Forward (Vf): 2.1V
  • Wavelength - Dominant: 570nm
  • Peak Wavelength: 574nm
  • Current - Test: 20mA
  • Height: 2.10mm
  • Dimension: 3.20mm L x 2.80mm W
  • Package: tape & reel
  • Standard Package: 2,000
