Same model may have multiple batches, images only for reference.

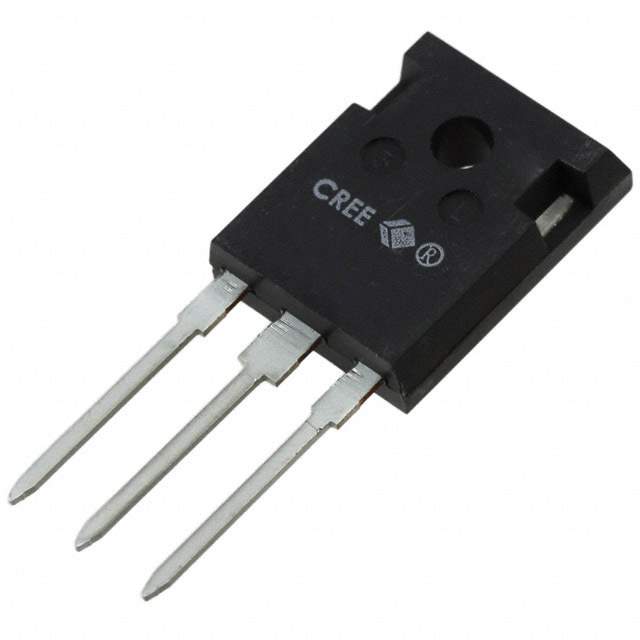

C3D16065D Real Image
Same model may have multiple batches, images only for reference.

C3D16065D

Part No C3D16065D
Manufacturer Cree/Wolfspeed
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 650V TO247 / Diode Array 1 Pair Common Cathode Silicon Carbide Schottky 650 V 8A (DC) Through Hole TO-247-3
Datasheet
C3D16065D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Manufacturer Wolfspeed, Inc.
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 650 V
Current - Average Rectified (Io) (per Diode) 8A (DC)
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 8 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 60 µA @ 650 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Through Hole
Case / Package TO-247-3
Supplier Device Package TO-247-3
Base Product Number C3D16065
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 30
Win Source Part Number 1324974-C3D16065D
Ultra Librarian 3D Model Ultra Librarian C3D16065D CAD Model

Description

The C3D16065D is a Silicon Carbide Schottky Diode manufactured by Wolfspeed, Inc.

  • DC Reverse Voltage: 650 V
  • Forward Voltage: 1.8 V @ 8 A
  • Diode Type: Common Cathode Pair
  • Reverse Recovery Time: None
  • Average Rectified Current Per Diode: 8A (DC)
  • Reverse Leakage Current: 60 µA @ 650 V
  • Operating Temperature Range: -55°C to 175°C
  • Package: TO-247-3 Case
  • RoHS Compliant: Yes
  • Category: Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
