ON Semiconductor SSRD8620CTT4G Product Overview

The SSRD8620CTT4G is a high-performance, dual Schottky rectifier designed and manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This device is engineered to meet the needs of modern, high-efficiency power supply systems, offering a combination of low forward voltage drop and high current handling capability.

Key Features

• Low Forward Voltage Drop: The SSRD8620CTT4G features a very low forward voltage drop, which enhances system efficiency by reducing power losses during conduction.
• High Current Rating: This device is capable of handling high forward currents, making it suitable for applications that demand robust current carrying capacity.
• Power Dissipation: With its excellent thermal characteristics, the SSRD8620CTT4G is able to dissipate heat effectively, ensuring reliable operation even under high power conditions.
• Dual Diode Configuration: The dual common-cathode configuration allows for use in a variety of circuit designs, providing design flexibility and saving board space.

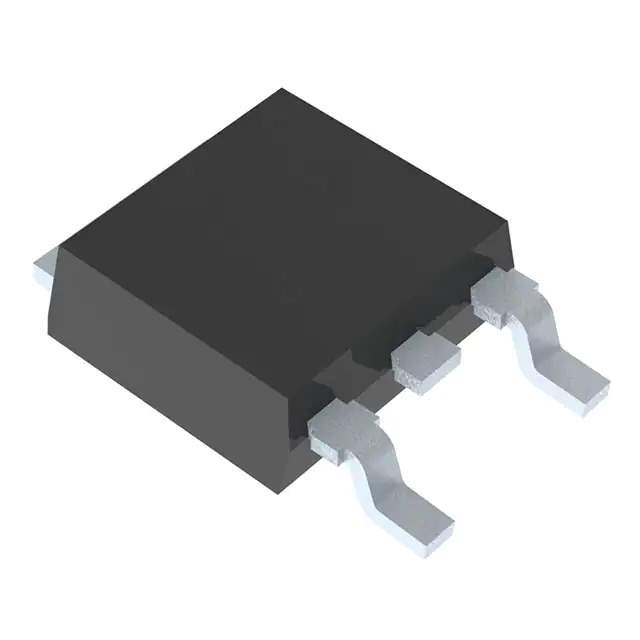

• Surface Mount Package: The SSRD8620CTT4G comes in a compact TO-252 (DPAK) surface-mount package, which is ideal for automated assembly processes and helps to reduce the overall size of the end product.

Applications

The ON Semiconductor SSRD8620CTT4G is well-suited for a wide range of applications, particularly where efficiency and thermal performance are crucial. Some of the common applications include:

• Switch-mode power supplies (SMPS)
• DC-DC converters
• Free-wheeling diodes in power inverters
• Power factor correction (PFC) circuits
• Automotive applications
• LED lighting

Quality and Reliability

ON Semiconductor is known for its commitment to quality and reliability, and the SSRD8620CTT4G is no exception. It is produced using stringent manufacturing processes, ensuring that each device meets the highest standards of performance and durability. The device also complies with RoHS standards, minimizing environmental impact and making it suitable for use in green energy applications.

Overall, the SSRD8620CTT4G from ON Semiconductor is a robust and reliable choice for designers looking to optimize their power circuitry with a high-efficiency, space-saving Schottky rectifier.
