Same model may have multiple batches, images only for reference.

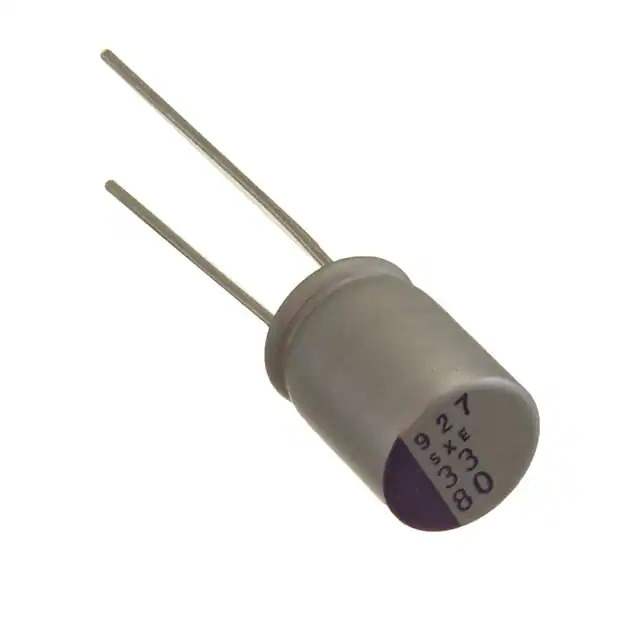

80SXE56M Real Image
Same model may have multiple batches, images only for reference.

80SXE56M

Part No 80SXE56M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 56UF 20% 80V T/H / 56 μF 80 V Aluminum - Polymer Capacitors Radial, Can 28mOhm 1000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic
Series OS-CON™, SXE
Package Bulk
Product Status Active
Type Polymer
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 80 V
ESR (Equivalent Series Resistance) 28mOhm
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Ripple Current @ Low Frequency 155 mA @ 120 Hz
Ripple Current @ High Frequency 3.1 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number 80SXE
Standard Package 200 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 858333-80SXE56M
Ultra Librarian 3D Model Ultra Librarian 80SXE56M CAD Model

Description

The 858333-80SXE56M is a polymer capacitor from Panasonic's OS-CON SXE series.

  • Capacitance: 56µF
  • Tolerance: ±20%
  • Voltage Rating: 80V
  • Size: 0.394" diameter, 0.512" height
  • Mounting Type: Through-Hole
  • Package: Bulk
  • Standard Package: 200 pieces
  • Operating Temperature Range: -55°C to 125°C
