C3D16065A Cree/Wolfspeed

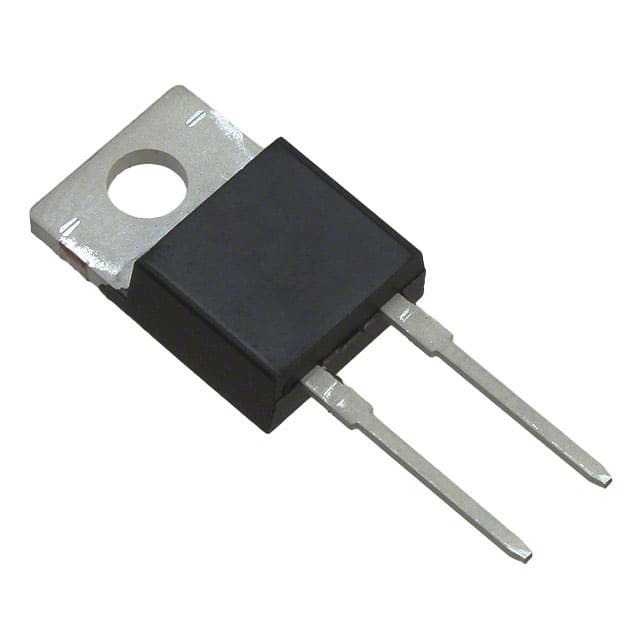

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Wolfspeed, Inc.
Series Z-Rec®
Package Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 650 V
Current - Average Rectified (Io) 39A (DC)
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 16 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 95 µA @ 650 V
Capacitance @ Vr, F 878pF @ 0V, 1MHz
Mounting Type Through Hole
Package / Case TO-220-2
Supplier Device Package TO-220-2
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number C3D16065
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 50
Win Source Part Number 1133656-C3D16065A
Ultra Librarian 3D Model Ultra Librarian C3D16065A CAD Model

Description

The C3D16065A is a silicon carbide Schottky diode from the Z-Rec series with a voltage rating of 650V and an average rectified current of 39A DC.

  • Voltage Rating: 650V
  • Average Rectified Current: 39A DC
  • Forward Voltage: 1.8V @ 16A
  • Reverse Recovery Time: 0ns
  • Reverse Leakage Current: 95µA @ 650V
  • Capacitance: 878pF @ 0V, 1MHz
  • Operating Temperature Range: -55°C to 175°C
  • Mounting Type: Through hole
  • Package: TO-220-2
  • Packaging: Tube
  • Standard Package: 50
