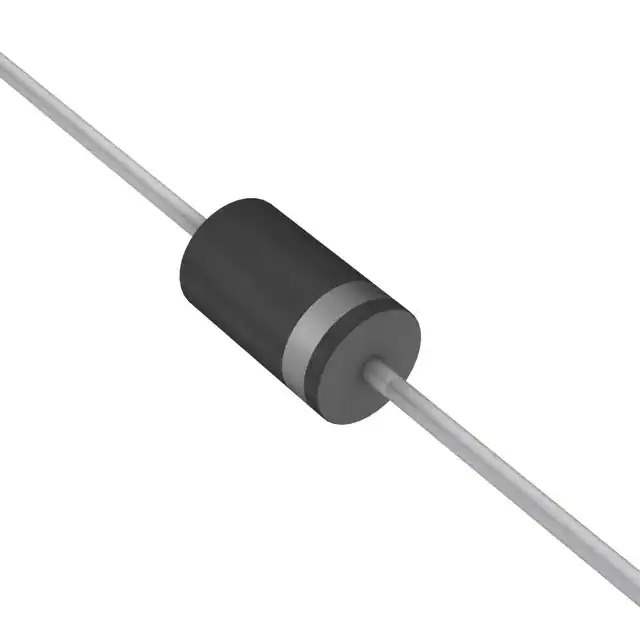

SR520 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 1.05 V @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 200 V
Mounting Type Through Hole
Package / Case DO-201AD, Axial
Supplier Device Package DO-201AD
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SR520
Standard Package 1,250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 675946-SR520
Ultra Librarian 3D Model Ultra Librarian SR520 CAD Model

Description

The 675946-SR520 is a fast recovery rectifier diode from Taiwan Semiconductor.

  • Voltage Rating: 200 V
  • Average Rectified Current: 5A
  • Forward Voltage Drop: 1.05 V @ 5 A
  • Reverse Leakage Current: 100 µA @ 200 V
  • Recovery Time: Less than 500 ns
  • Current Handling Capability: Over 200 mA
  • Applications: Power supplies, inverters, and motor control circuits
  • Package: DO-201AD axial package
