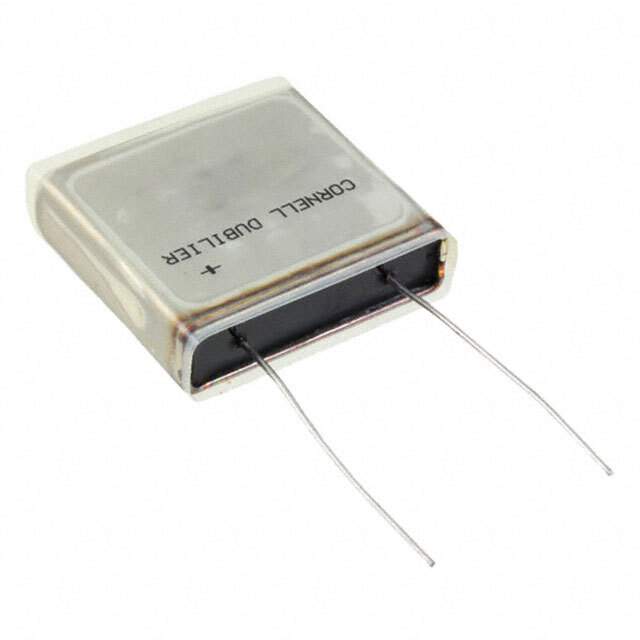

MLS331M200EK1C

Name: MLS331M200EK1C
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1071045
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MLS331M200EK1C
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 200V FLATPACK / 330 µF 200 V Aluminum Electrolytic Capacitors FlatPack 426mOhm @ 120Hz 10000 Hrs @ 85°C
Datasheet	MLS331M200EK1C Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	MLS
Package	Bulk
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	200 V
ESR (Equivalent Series Resistance)	426mOhm @ 120Hz
Lifetime @ Temp.	10000 Hrs @ 85°C
Temperature Range - Operating	-55°C ~ 125°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	4.9 A @ 120 Hz
Ripple Current @ High Frequency	6.2 A @ 20 kHz
Lead Spacing	1.000" (25.40mm)
Dimension	1.500" L x 1.750" W (38.10mm x 44.45mm)
Height - Seated (Max)	0.500" (12.70mm)
Mounting Type	Through Hole
Package / Case	FlatPack
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8532.22.0055
Other Names	2266-MLS331M200EK1C
Standard Package	10
Win Source Part Number	1071045-MLS331M200EK1C
Ultra Librarian 3D Model	Ultra Librarian MLS331M200EK1C CAD Model

Description

The Cornell Dubilier Electronics (CDE) MLS series aluminum electrolytic capacitor is a high-quality component designed for general-purpose use.

Capacitance: 330 µF
Voltage Rating: 200 V
Tolerance: ±20%
ESR: 426mOhm @ 120Hz
Polarization: Polarized
Mounting Type: Through-Hole
Package/Case: Flatpack
Height: 0.500" (12.70mm)
Dimension: 1.500" L x 1.750" W (38.10mm x 44.45mm)
Temperature Range: -55°C to 125°C
Lifetime: 10000 hours @ 85°C
