Same model may have multiple batches, images only for reference.

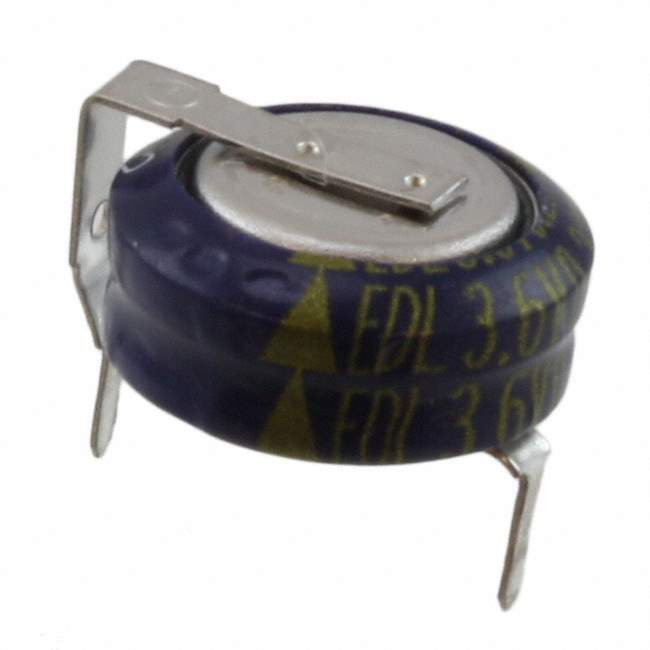

EDLRD224H3R6C Real Image
Same model may have multiple batches, images only for reference.

EDLRD224H3R6C

Part No EDLRD224H3R6C
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 220MF -20% +80% 3.6V T/H / 220 mF (EDLC) Supercapacitor 3.6 V Radial, Can, Horizontal 50Ohm @ 1kHz 2000 Hrs @ 85°C
Datasheet
EDLRD224H3R6C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Cornell Dubilier Electronics (CDE)
Series RD
Package Bulk
Product Status Obsolete
Capacitance 220 mF
Tolerance -20%, +80%
Voltage - Rated 3.6 V
ESR (Equivalent Series Resistance) 50Ohm @ 1kHz
Lifetime @ Temp. 2000 Hrs @ 85°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can, Horizontal
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.413" Dia (10.50mm)
Height - Seated (Max) 0.236" (6.00mm)
Temperature Range - Operating -25°C ~ 85°C
Standard Package 200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1349160-EDLRD224H3R6C
Ultra Librarian 3D Model Ultra Librarian EDLRD224H3R6C CAD Model

Description

The 1349160-EDLRD224H3R6C from Cornell Dubilier Electronics (CDE) is an Electric Double Layer Capacitor (EDLC) or Supercapacitor.

  • Series: RD
  • Termination: PC Pins
  • Package / Case: radial, can, horizontal
  • Capacitance: 220 mF
  • Voltage - Rated: 3.6 V
  • ESR (Equivalent Series Resistance): 50Ohm @ 1kHz
  • Lifetime @ Temp.: 2000 Hrs @ 85°C
  • Mounting Type: through hole
  • Operating Temperature: -25°C ~ 85°C
  • Status: obsolete
