Same model may have multiple batches, images only for reference.

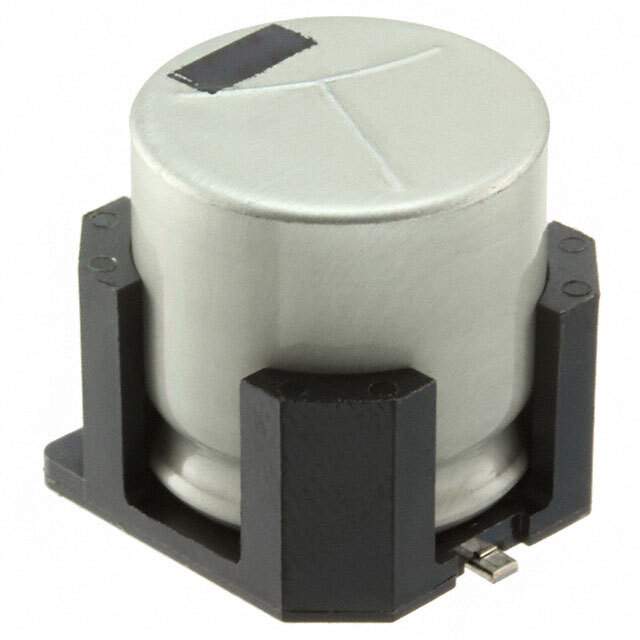

AFK226M2AF24VT-F Real Image
Same model may have multiple batches, images only for reference.

AFK226M2AF24VT-F

Part No AFK226M2AF24VT-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 100V SMD / 22 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1.3Ohm @ 100kHz 2000 Hrs @ 105°C
Datasheet
AFK226M2AF24VT-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series AFK_V
Package Tape & Reel
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) 1.3Ohm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive, Bypass, Decoupling
Ripple Current @ Low Frequency 97.5 mA @ 120 Hz
Impedance 1.3 Ohms
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1337576-AFK226M2AF24VT-F
Ultra Librarian 3D Model Ultra Librarian AFK226M2AF24VT-F CAD Model

Description

This aluminum electrolytic capacitor is part of the AFK_V series and has a capacitance of 22 µF with a tolerance of ±20%.

  • Manufacturer: United Chemi-Con
  • Product: AFK_V series
  • Capacitance: 22 µF
  • Tolerance: ±20%
  • Rated Voltage: 100 V
  • Surface Mount Land Size: 0.327 inches x 0.327 inches
  • Type: SMD
  • Applications: Automotive, Bypass, Decoupling
  • ESR (Equivalent Series Resistance): 1.3 Ohm @ 100kHz
  • Lifetime: 2000 hours @ 105°C
  • Package: Tape and Reel
  • Standard Package: 500
  • Type: Radial Can
  • Diameter: 0.315 inches
  • Height Seated: 0.394 inches
  • Operating Temperature: -55°C to 105°C
