Same model may have multiple batches, images only for reference.

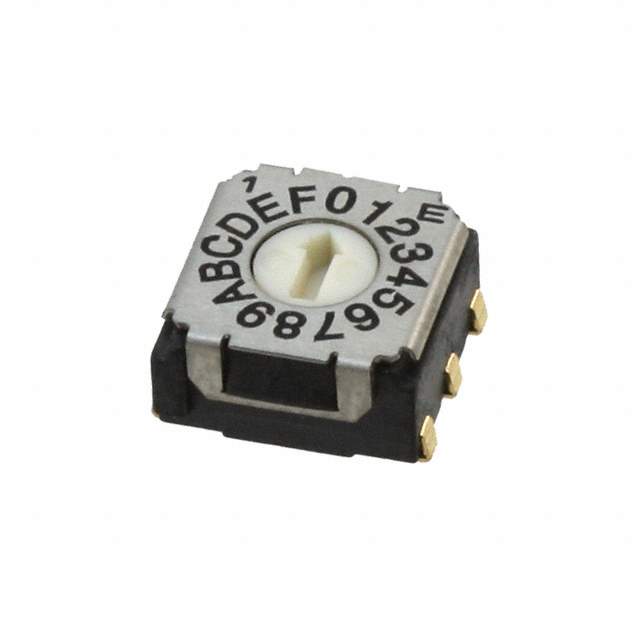

SH-7050TA Real Image
Same model may have multiple batches, images only for reference.

SH-7050TA

Part No SH-7050TA
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SWITCH ROTARY DIP HEX 100MA 5V
Datasheet
SH-7050TA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit Hexadecimal
Number of Positions 16
Current Rating 100mA
Voltage Rating 5VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.148" (3.75mm)
Mounting SMD (SMT)
Termination Style J Lead
Pitch 0.100" (2.54mm), Full
Washable Yes
Body Material Polyphenylene Sulfide (PPS)
Length 0.287" (7.30mm)
Temperature Range - Operating -40°C to 85°C
Electrical Life 10,000 Steps
Win Source Part Number 1095638-SH-7050TA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SH-7050TA CAD Model

Description

The Copal Electronics Inc. rotary switch is a high-quality electronic component with 16 positions, a pitch of 0.100" (2.54mm), and a voltage rating of 5VDC.

  • Manufacturer: Copal Electronics Inc.
  • Positions: 16
  • Pitch: 0.100" (2.54mm)
  • Voltage Rating: 5VDC
  • Current Rating: 100mA
  • Material: Polyphenylene Sulfide (PPS)
  • Actuator Type: Flush, Recessed
  • Actuator Level: Rotary Tool
  • Washable: Yes
  • Electrical Life: 10,000 steps
  • Category: Switches
  • Temperature Range: -40°C to 85°C
  • Supply and Demand: Balanced
