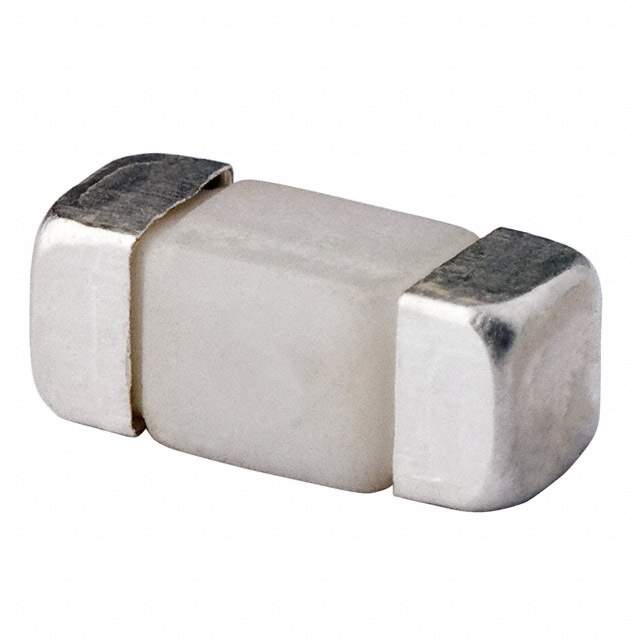

CB61F4A-TR1 Real Image
Same model may have multiple batches, images only for reference.

CB61F4A-TR1

Part No CB61F4A-TR1
Manufacturer Cooper Bussmann, Inc.
Catalog Fuses
Description FUSE BRD MNT 4A 125VAC/VDC 2SMD / Fast-Acting SMD Brick™ Fuses CB61F Series
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Packaging Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 4A
Voltage Rating - AC 125V
Voltage Rating - DC 125V
Response Time Fast Blow
Manufacturer Package 2-SMD, Square End Block
Mounting Style SMD
Breaking Capacity at Rated Voltage 100A AC, 300A DC
Melting I2t 4.4
Approvals CQC, cULus, PSE
Dimension 0.240" L x 0.101" W x 0.101" H (6.10mm x 2.57mm x 2.57mm)
DC Cold Resistance 0.017 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811225-CB61F4A-TR1
Ultra Librarian 3D Model Ultra Librarian CB61F4A-TR1 CAD Model

Description

The Eaton - Electronics Division 811225-CB61F4A-TR1 is a reel-packaged electronic component that is designed to be used in SMD applications.

  • Win Source Part Number: 811225-CB61F4A-TR1
  • Mounting Style: SMD
  • Fuse Type: Board Mount (Cartridge Style Excluded)
  • Voltage Rating (AC and DC): 125V
  • Response Time: Fast Blow
  • Melting I2t: 4.4
  • Approvals: CQC, cULus, PSE
  • DC Cold Resistance: 0.017 Ohms
  • Dimension: 0.240" L x 0.101" W x 0.101" H (6.10mm x 2.57mm x 2.57mm)
  • Manufacturer Package: 2-SMD, Square End Block
  • Supply and Demand Status: Limited
  • Manufacturer Package Quantity: 1,000
  • MSL Level: 1 (Unlimited)
  • Current Rating: 4A
  • Breaking Capacity @ Rated Voltage: 100A AC, 300A DC
