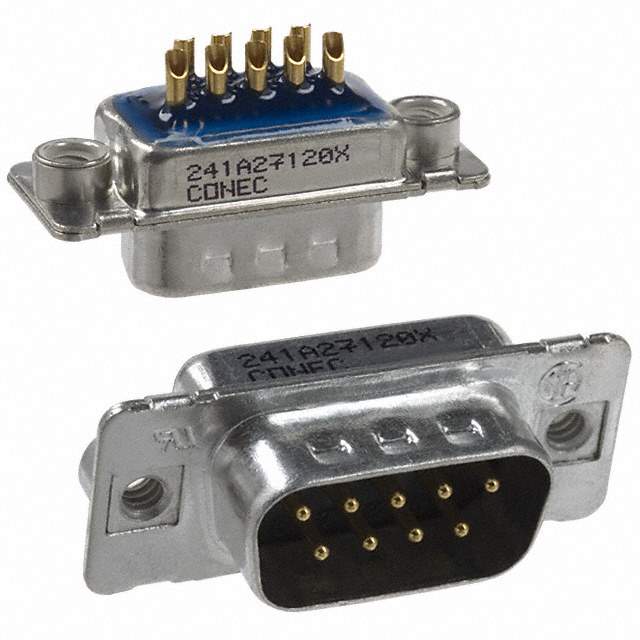

241A27120X Real Image
Same model may have multiple batches, images only for reference.

241A27120X

Part No 241A27120X
Manufacturer Conec
Catalog D - SUB, D - SHAPED connectors
Description CONN DSUB PLUG 9POS STR SLDR CUP
Datasheet
241A27120X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Conec
Series 241A
Packaging Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Mounting Free Hanging (In-Line)
Flange Feature Cable Side (4-40)
Termination Solder Cup
Features Filter, Grounding Indents
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection IP20
Material Flammability Rating UL94 V-0
Operating Temperature Range -25°C ~ 105°C
Voltage Rating 100V
Current Rating 7.5A
Color Black
Contact Form Machined
Housing Material Thermoplastic
Wire Gauge 20 AWG
Contact Material Copper Alloy
Win Source Part Number 766678-241A27120X
Popularity Medium
Supply and Demand Status Limited
Quantity per package 25
Family Name 241A
Introduction Date February 09, 2006
ECCN EAR99
Country of Origin Germany
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 241A27120X CAD Model

Description

The Conec 766678-241A27120X is a male plug D-sub connector with 9 signal contacts.

  • Type: Male Plug D-sub Connector
  • Signal Contacts: 9
  • Voltage Rating: 100V
  • Current Rating: 7.5A
  • Features: Filtering, Grounding Indent
  • Packaging: Tray
  • Operating Temperature: -25°C to 105°C
  • Manufacturer: Conec
  • Win Source Part Number: 766678-241A27120X
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Housing Material: Thermoplastic
  • Flammability Rating: UL94 V-0
  • Ingress Protection: IP20
  • Mounting: Free Hanging (In-Line)
