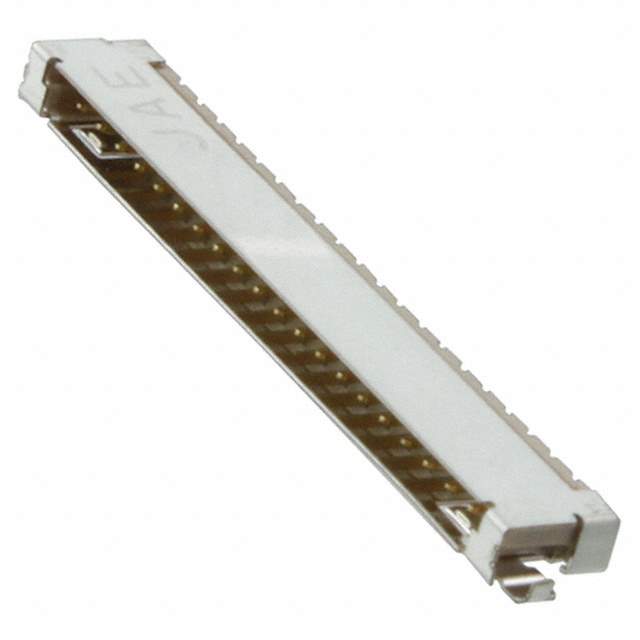

FI-SE20P-HFE

Part No FI-SE20P-HFE
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 20POS 1.25MM / Connector Header Surface Mount, Right Angle 20 position 0.049" (1.25mm)
Datasheet
FI-SE20P-HFE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer JAE Electronics
Packaging Strip
Connector Type Receptacle
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 20
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Friction Lock
Insulation Height 0.083" (2.10mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish - Post Tin or Tin-Alloy
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Shielded, Solder Retention
Temperature Range - Operating -40°C ~ 80°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A per Contact
Voltage Rating 200V
Base Product Number FI-SE20
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 670-1843,-FI-SE20P-HFE,-670-1843,-670-1843-ND,FI-SE20P-HFE-ND,FISE20PHFE
Standard Package 1
Win Source Part Number 1332126-FI-SE20P-HFE
Ultra Librarian 3D Model Ultra Librarian FI-SE20P-HFE CAD Model

Description

The JAE Electronics 1332126-FI-SE20P-HFE is a 20-position male pin header connector with a receptacle connector type.

  • Fastening Type: friction lock
  • Shielded: Yes
  • Solder Retention: Yes
  • Style: board to cable/wire
  • Contact Material: copper alloy
  • Voltage Rating: 200V
  • Insulation Material: liquid crystal polymer (LCP) and glass filled
  • Material Flammability: UL94 V-0
  • Mounting Style: surface mount and right angle mounting
  • Contact Finish - Mating: gold
  • Contact Finish - Post: tin or tin-alloy
  • RoHS Compliant: Yes
  • Temperature Range: -40°C to 80°C
