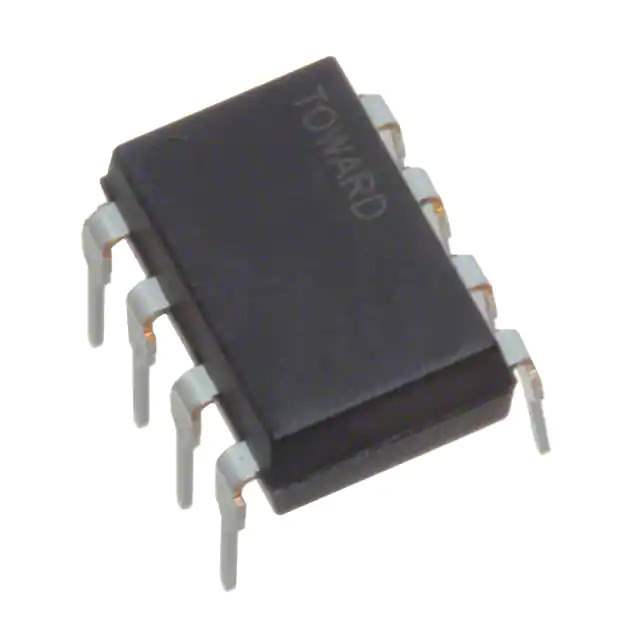

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Comus International
Series 37
Package Tube
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC
Voltage - Input 1.17VDC
Voltage - Load 0 V ~ 60 V
Load Current 500 mA
On-State Resistance (Max) 1.6 Ohms
Termination Style PC Pin
Package / Case 8-DIP (0.300", 7.62mm)
Supplier Device Package 8-DIP
Standard Package 45 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 859218-AC37
Ultra Librarian 3D Model Ultra Librarian AC37 CAD Model

Description

The 859218-AC37 is a solid state relay from Comus International.

  • Series: 37
  • Termination Style: PC Pin
  • Package / Case: 8-DIP
  • Standard Package: 45 pieces
  • Input Voltage: 1.17VDC
  • Output Type: AC and DC
  • Circuit Configuration: SPST-NO (1 Form A) x 2
  • Maximum On-State Resistance: 1.6 Ohms
  • Load Current: 500 mA
  • Voltage Range (Load): 0 V to 60 V
  • Mounting Type: Through Hole
