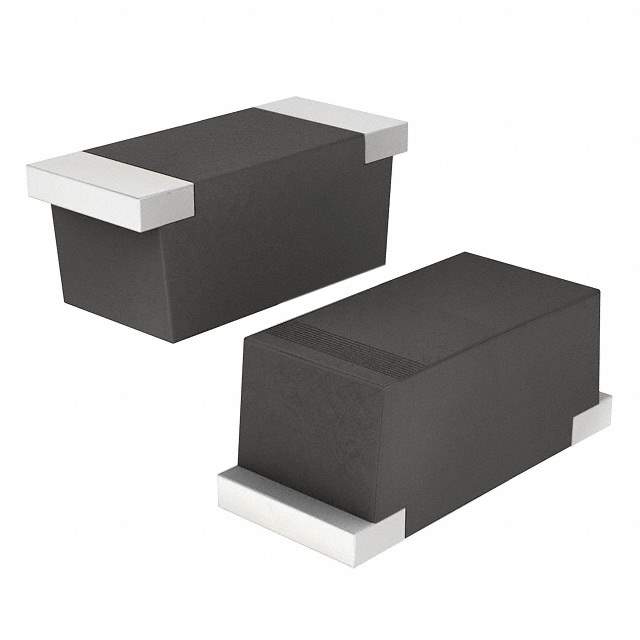

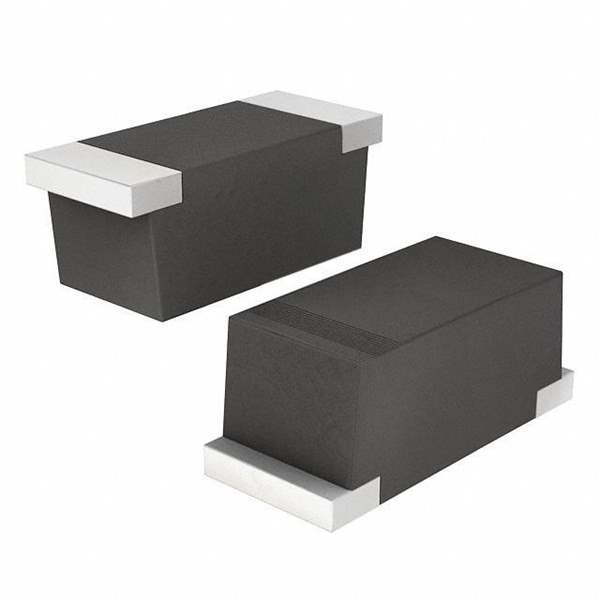

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000V (1kV)
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5μA @ 1000V
Capacitance @ Vr, F 15pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package Mini SMA/SOD-123
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 039902-CGRM4007-HF
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian CGRM4007-HF CAD Model

Description

CGRM4007-HF Resistor

The CGRM4007-HF resistor is a high-frequency optimized component, perfect for complex electronic systems that operate in demanding conditions. This resistor helps in achieving precision and efficiency in high-frequency environments.

Applications

  • RF circuit design
  • Aerospace and defense electronics
  • High-speed computing

Features and Benefits

  • Optimized for high-frequency applications
  • Excellent linearity and accuracy
  • Robust against electromagnetic interference

It is an ideal component for projects that require precision in high-frequency signal processing.
