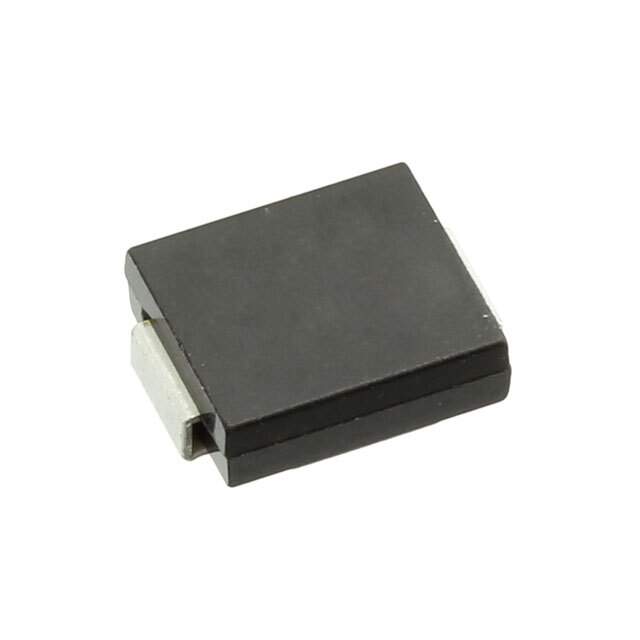

The CEFC303 is a surface-mount Schottky Barrier Rectifier manufactured by Comchip Technology. This diode is designed for high-frequency applications where low forward voltage drop and fast switching speeds are essential. Schottky diodes are characterized by a metal-semiconductor junction, which results in a lower forward voltage drop compared to traditional PN junction diodes. This characteristic makes them ideal for applications where minimizing power loss is critical.

Applications

• Switching power supplies
• DC-DC converters
• Reverse polarity protection
• Free-wheeling diodes in inductive circuits
• High-frequency rectification

Features

• Low forward voltage drop
• Fast switching speed
• Surface mount package
• High surge current capability
• RoHS compliant

Benefits

• Improved efficiency in power conversion circuits due to lower forward voltage drop.
• Reduced power dissipation, leading to cooler operation and longer component life.
• Smaller circuit board footprint due to surface mount packaging.
• Enhanced reliability and robustness in demanding applications.
• Environmentally friendly due to RoHS compliance.

Specifications

While specific electrical characteristics may vary based on the exact datasheet revision, typical specifications for a Schottky Barrier Rectifier like the CEFC303 include:

• Maximum Repetitive Reverse Voltage (VRRM): Typically in the range of 20V to 100V
• Maximum Average Forward Rectified Current (IF(AV)): Typically in the range of 1A to 3A
• Forward Voltage (VF): Typically 0.3V to 0.7V at rated current
• Reverse Leakage Current (IR): Typically in the microampere range
• Operating Temperature Range: Typically -55°C to +125°C or higher
• Package: SMB/DO-214AA or similar surface mount package

For detailed specifications, refer to the manufacturer's datasheet.
