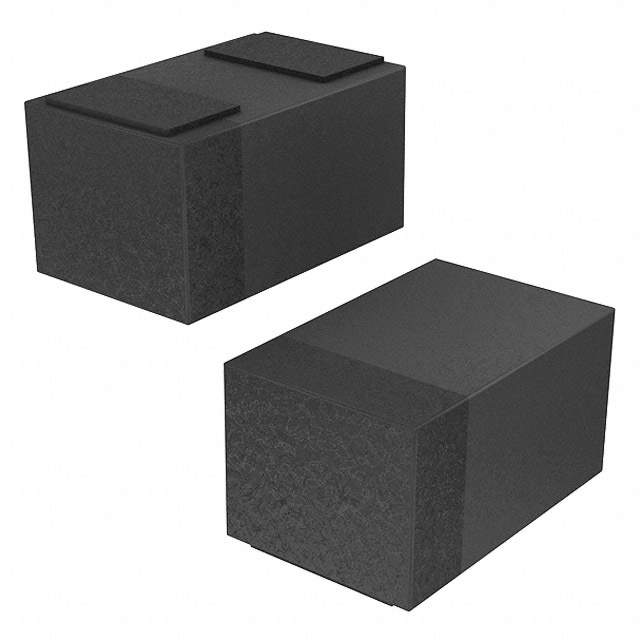

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 80V
Current - Average Rectified (Io) 125mA
Voltage - Forward (Vf) (Max) @ If 1V @ 100mA
Reverse Recovery Time (trr) 9ns
Current - Reverse Leakage @ Vr 100nA @ 80V
Capacitance @ Vr, F 9pF @ 0.5V, 1MHz
Mounting SMD (SMT)
Case / Package 0402/SOD-923F
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 1029028-CDSQR4448
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian CDSQR4448 CAD Model

Description

The Comchip Technology CDSQR4448 Standard Diode is an active product with a current rating of 125mA and a voltage rating of 80V.

  • Forward Voltage: 1V @ 100mA
  • Reverse Leakage Current: 100nA @ 80V
  • Package: 0402/SOD-923F package
  • Mounting: Surface mountable
  • Operating Temperature Range: 125°C (Max)
  • Popularity: Medium popularity
  • Status: Sufficient supply and demand status
  • Quantity Per Package: 5k pcs.
