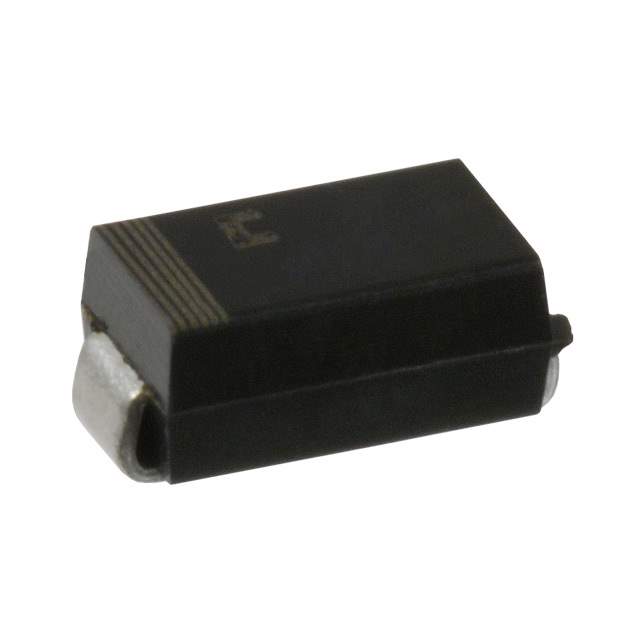

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 310mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1mA @ 20V
Capacitance @ Vr, F 160pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package SMA-F / DO-214AC
Operating Temperature - Junction -20°C to 80°C
Win Source Part Number 1028583-CDBA120SL-G
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian CDBA120SL-G CAD Model

Description

The Comchip Technology CDBA120SL-G is a Schottky diode with a maximum reverse voltage of 20V and an average rectified current of 1A.

  • Maximum Reverse Voltage: 20V
  • Average Rectified Current: 1A
  • Forward Voltage: 310mV @ 1A
  • Reverse Leakage Current: 1mA @ 20V
  • Package: SMA-F/DO-214AC
  • Mounting: SMD(SMT)
  • Capacitance: 160pF @ 4V and 1MHz
  • Junction Temperature Range: -20°C to 80°C
  • Category: Discrete Semiconductor Products
  • Production Status: Active
  • Package Quantity: 5k pcs
