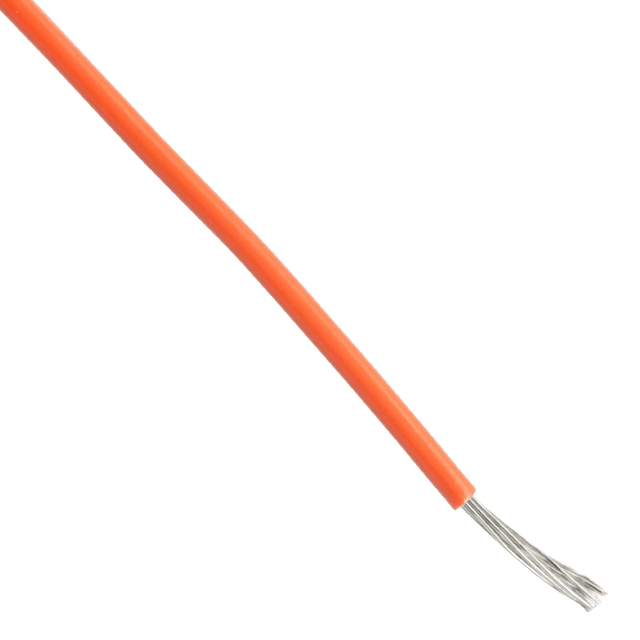

3132-22-1-0500-008-1-TS Real Image
Same model may have multiple batches, images only for reference.

3132-22-1-0500-008-1-TS

Part No 3132-22-1-0500-008-1-TS
Manufacturer CNC Tech
Catalog Single Conductor Cables (Hook - UpWire)
Description HOOK-UP STRND 22AWG 300V ORN 25' / 22 AWG Hook-Up Wire 17/0.0063" Orange 300V 25.00' (7.62m)
Datasheet
3132-22-1-0500-008-1-TS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cables, Wires>Single Conductor Cables (Hook-Up Wire)
Manufacturer CNC Tech
Packaging Spool
Cable Type Hook-Up
Wire Gauge 22 AWG
Conductor Strand 17/0.0063"
Conductor Material Copper, Tinned
Jacket (Insulation) Material Silicone Rubber
Jacket (Insulation) Diameter 0.063" (1.60mm)
Jacket (Insulation) Thickness 0.015" (0.38mm)
Length 25.00' (7.62m)
Voltage 300V
Temperature Range - Operating -30°C ~ 150°C
Jacket Color Orange
Ratings UL Style 3132
Features High Temperature, Oil Resistant
Base Product Number 3132-22
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Part Number CN100A-25
Standard Package 1
Win Source Part Number 1334626-3132-22-1-0500-008-1-TS
Ultra Librarian 3D Model Ultra Librarian 3132-22-1-0500-008-1-TS CAD Model

Description

The CNC Tech 1334626-3132-22-1-0500-008-1-TS is a hook-up cable with a wire gauge of 22 AWG and a length of 25.00'.

  • Manufacturer: CNC Tech
  • Wire Gauge: 22 AWG
  • Length: 25.00'
  • Oil-Resistant: Yes
  • Temperature Resistance: High
  • Voltage Rating: 300V
  • Insulation Material: Silicone Rubber
  • Insulation Jacket Thickness: 0.015" (0.38mm)
  • Insulation Jacket Diameter: 0.063" (1.60mm)
  • Conductor Material: Copper, Tinned
  • Strand: 17/0.0063"
  • Rated Under: UL Style 3132
  • Application: Single Conductor Cables
