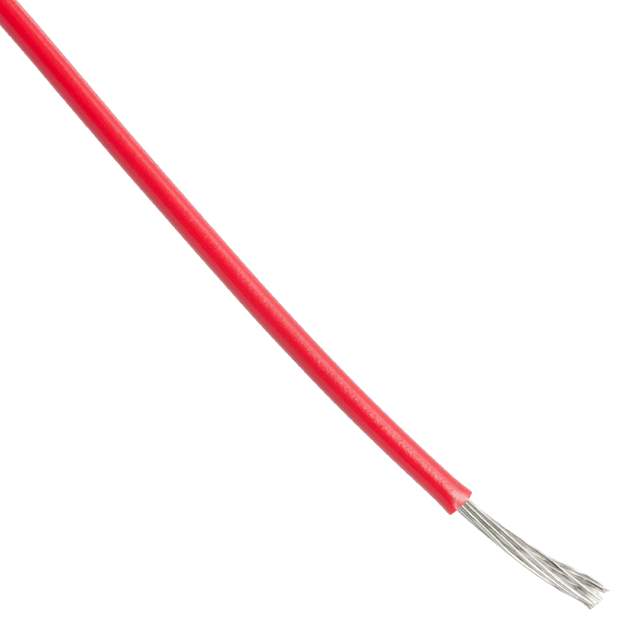

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires>Single Conductor Cables (Hook-Up Wire)
Mfr Alpha Wire
Package Spool
Product Status Obsolete
Cable Type Hook-Up
Wire Gauge 1/0 AWG
Conductor Strand 1045/30
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.592" (15.04mm)
Jacket (Insulation) Thickness 0.082" (2.08mm)
Length 100.0' (30.5m)
Voltage 600V
Temperature Range - Operating -40°C ~ 105°C
Jacket Color Red
Ratings UL Style 1232/1284
Base Product Number 780001
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names 780001 RD005-ND,780001RD005
Standard Package 1
Win Source Part Number 1087804-780001 RD005
Ultra Librarian 3D Model Ultra Librarian 780001 RD005 CAD Model

Description

The 780001 RD005 is a single conductor cable from Alpha Wire.

  • Wire Gauge: 1/0 AWG
  • Length: 100.0' (30.5m)
  • Cable Type: Hook-Up
  • Voltage: 600V
  • Jacket (Insulation) Material: Poly-Vinyl Chloride (PVC)
  • Jacket Color: Red
  • Operating Temperature: -40°C to 105°C
  • UL Style: 1232/1284
  • Conductor Material: Copper, Tinned
  • HTSUS: 8544.49.3080
