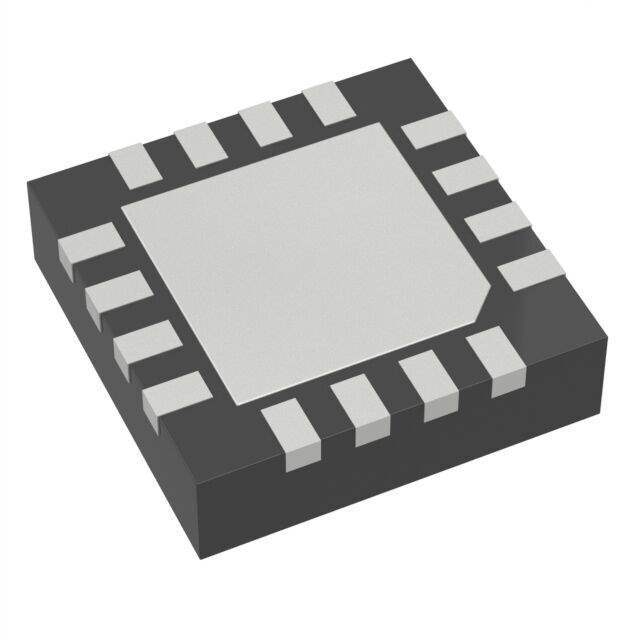

Same model may have multiple batches, images only for reference.
CMX90A004Q7-R350 CML Micro
Same model may have multiple batches, images only for reference.

CMX90A004Q7-R350

Part No CMX90A004Q7-R350
Manufacturer CML Microcircuits
Catalog RF Amplifiers
Description IC AMP GPS 860MHZ-960MHZ 16VQFN
Datasheet
CMX90A004Q7-R350 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

The CMX90A004 is a two-stage, fully matched MMIC PA delivering +32.5 dBm of saturated output power for use in the 860 – 960 MHz frequency range, applicable to license-free bands.
The device is optimised for maximum efficiency at collector voltages of 2.7 – 4.5 V, making it suitable for systems operating from a single-cell Li-Ion battery.
CMX90A004 is highly integrated for ease of use, minimising external component count and reducing board area. RF input and output
matching are incorporated on-chip, as well as active bias circuitry and input DC-blocking capacitor.
