Same model may have multiple batches, images only for reference.

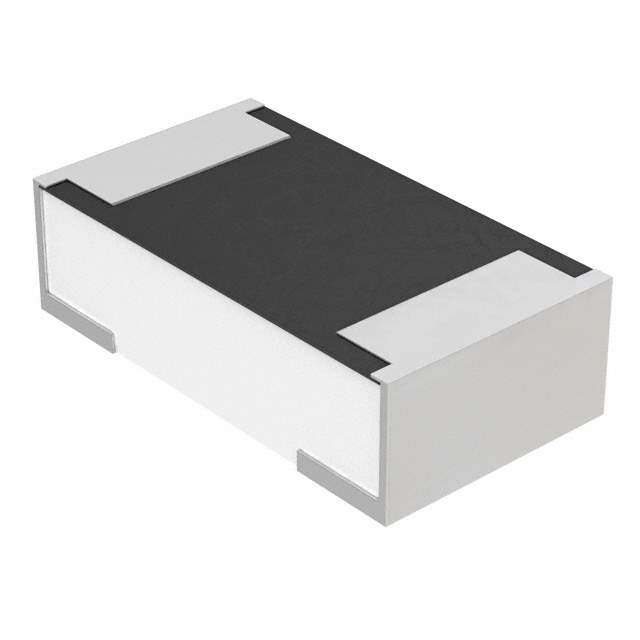

MFU0603FF00500P100 Real Image
Same model may have multiple batches, images only for reference.

MFU0603FF00500P100

Part No MFU0603FF00500P100
Manufacturer Vishay
Catalog Fuses
Description FUSE BOARD MNT 500MA 32VDC 0603 / 500 mA AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0603 (1608 Metric)
Datasheet
MFU0603FF00500P100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Vishay Beyschlag/Draloric/BC Components
Series MFU
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 500 mA
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.0009
Approval Agency IEC, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.061" L x 0.033" W x 0.018" H (1.55mm x 0.85mm x 0.45mm)
DC Cold Resistance 0.55 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names MFU0603.50DKR,MFU0603.50TR,MFU0603.50CT
Standard Package 1,000
Win Source Part Number 957693-MFU0603FF00500P100
Ultra Librarian 3D Model Ultra Librarian MFU0603FF00500P100 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components electronic component has a Win Source Part Number of 957693-MFU0603FF00500P100.

  • Type: fuse type board mount (cartridge style excluded)
  • Voltage Rating: 32V
  • Response Time: fast blow
  • Breaking Capacity @ Rated Voltage: 50A
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.061" L x 0.033" W x 0.018" H (1.55mm x 0.85mm x 0.45mm)
  • Package/Case: 0603 (1608 Metric)
  • Standard Package: 1,000
