Same model may have multiple batches, images only for reference.

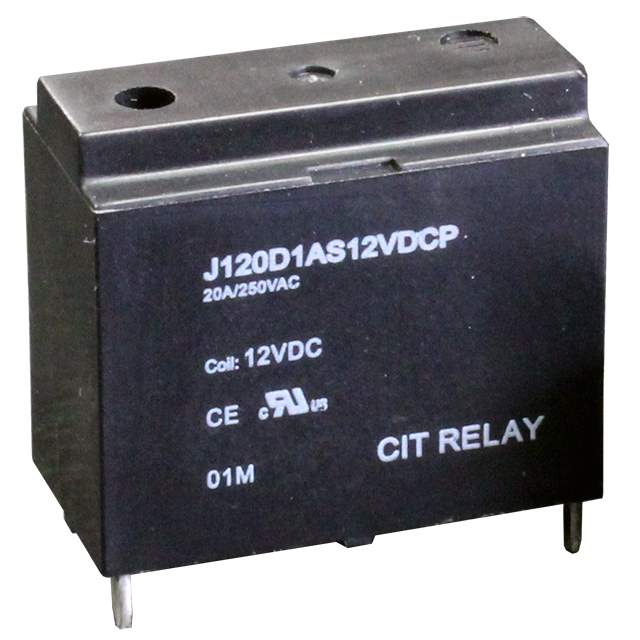

J120D1AS12VDCP Real Image
Same model may have multiple batches, images only for reference.

J120D1AS12VDCP

Part No J120D1AS12VDCP
Manufacturer CIT Relay & Switch
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 20A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Datasheet
J120D1AS12VDCP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr CIT Relay and Switch
Series J120D
Package Tray
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 20 A
Switching Voltage 300VAC - Max
Coil Current 75 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -30°C ~ 55°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 160 Ohms
Base Product Number J120D1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Other Names 2449-J120D1AS12VDCP
Standard Package 20
Win Source Part Number 1028921-J120D1AS12VDCP
Ultra Librarian 3D Model Ultra Librarian J120D1AS12VDCP CAD Model

Description

The J120D1AS12VDCP is a power relay that belongs to the Power Relays, Over 2 Amps category and has been manufactured by CIT Relay and Switch.

  • Packaging: Tray
  • Standard Package: 20 units
  • Coil Voltage: 12VDC
  • Contact Rating: 20 A
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99.41.0050
