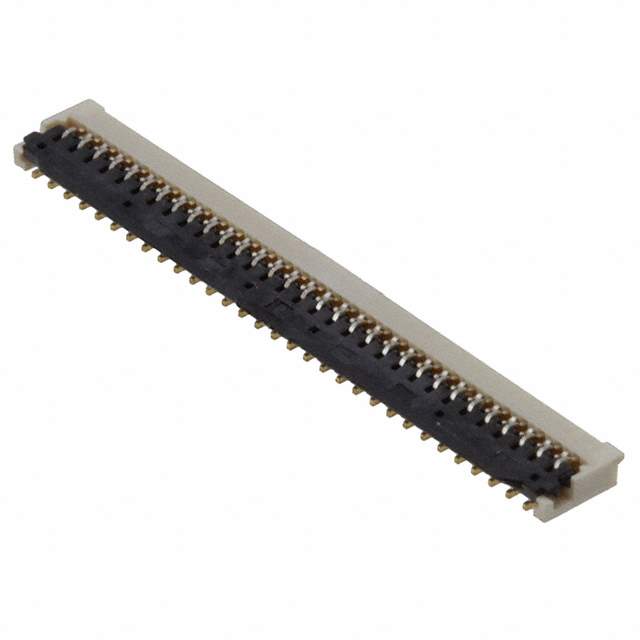

Same model may have multiple batches, images only for reference.

FB10S061JA2R6000

Get a Quote

Part No	FB10S061JA2R6000
Manufacturer	JAE Electronics
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC BOTTOM 61POS 0.30MM R/A
Datasheet	FB10S061JA2R6000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	JAE Electronics
Packaging	Reel - TR
Flat Flex Type	FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	61
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.036" (0.90mm)
Locking Feature	Flip Lock
Cable End Type	Tabbed or Tapered
Contact Finish	Gold
Housing Material	Plastic
Actuator Material	Plastic
Features	Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-40°C to 85°C
Current Rating	0.35A
Contact Finish Thickness	3.9μin (0.10μm)
Housing Color	White
Actuator Color	Black
Mating Cycles	20
Win Source Part Number	1037830-FB10S061JA2R6000
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	6k pcs
Ultra Librarian 3D Model	Ultra Librarian FB10S061JA2R6000 CAD Model

Description

The JAE Electronics 1037830-FB10S061JA2R6000 is a connector with a zero insertion force (ZIF) feature. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

Feature: Zero Insertion Force (ZIF)
Number of Positions: 61
Pitch: 0.012 inches (0.30mm)
Voltage Rating: 50V
Current Rating: 0.35A
Contact Finish: Gold with a thickness of 3.9μin (0.10μm)
Type: FPC Flat Flex, Bottom Contacts
Housing Material: Plastic, White Color
Actuator Material: Plastic, Black Color
Mounting: Surface-Mounted, Right-Angled
Packaging: Reel with 6k pcs
