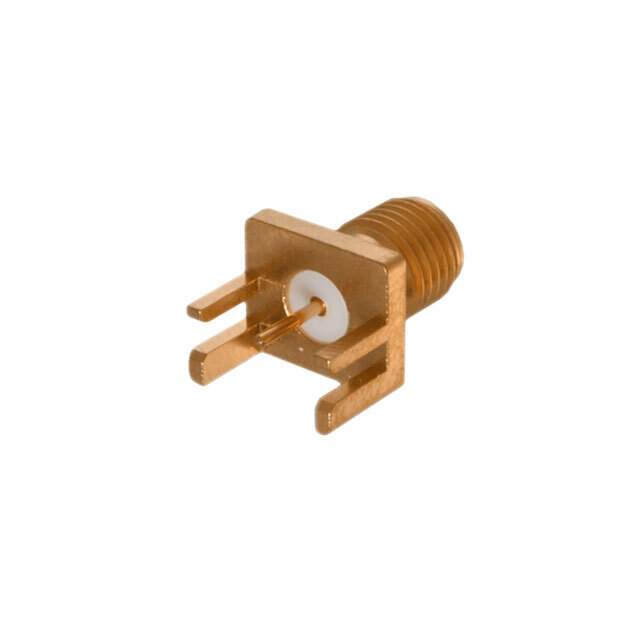

142-0701-831 Real Image
Same model may have multiple batches, images only for reference.

142-0701-831

Part No 142-0701-831
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)
Description CONN SMA JACK STR 50OHM EDGE MNT
Datasheet
142-0701-831 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Cinch Connectivity Solutions Johnson
Packaging Bulk
Status Active
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting Board Edge, End Launch
Fastening Type Threaded
Maximum Input Frequency 18GHz
Housing Color Gold
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C to 165°C
Center Contact Material Beryllium Copper
Voltage Rating 335V
Mating Cycles 500
Win Source Part Number 038789-142-0701-831
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 142-0701-831 CAD Model

Description

142-0701-831: Premium Right-Angle Coaxial Connector

Engineered for seamless integration in tight spaces, the 142-0701-831 right-angle coaxial connector excels in minimizing signal loss and maintaining high-performance levels in demanding applications.

  • Applications: Aerospace communication, RF modules, broadcasting equipment, satellite systems
  • Features & Benefits:
    • Right-angle design for space-saving installations
    • Enhanced protection against electromagnetic interference
    • Reliable and robust connectivity
  • Additional Details: Its superior shielding capability provides excellent protection against electromagnetic and RF interference.
