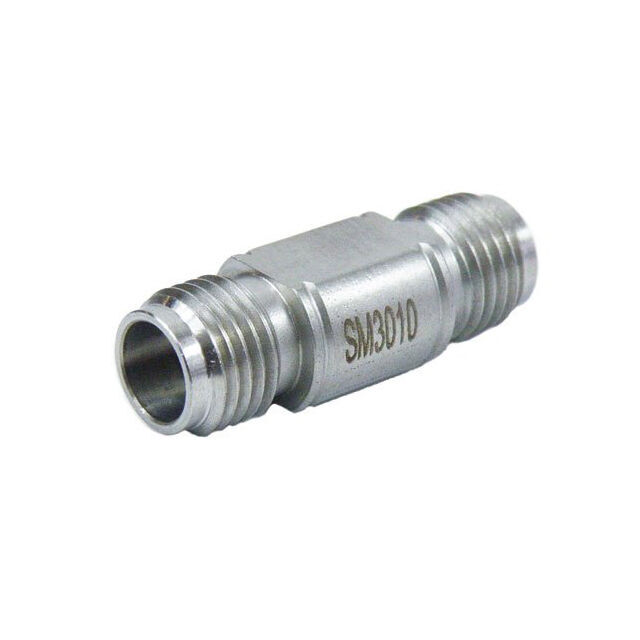

Same model may have multiple batches, images only for reference.

SM3010

Name: SM3010
Brand: Fairview Microwave
SKU: 1477800
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SM3010
Manufacturer	Fairview Microwave
Catalog	Coaxial Connectors (RF)
Description	Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Jack, Female Socket To 2.4mm (APC-2.4, OS-50) Jack, Female Socket 50 Ohms
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mfr	Fairview Microwave
Packaging	Bulk
Adapter Type	Jack to Jack
Conversion Type	Same Series
Adapter Series	2.4mm to 2.4mm
Center Gender	Female to Female
Convert From (Adapter End)	2.4mm (APC-2.4, OS-50) Jack, Female Socket
Convert To (Adapter End)	2.4mm (APC-2.4, OS-50) Jack, Female Socket
Impedance	50 Ohms
Style	Straight
Mounting Type	Free Hanging (In-Line)
Fastening Type	Threaded, Threaded
Frequency - Max	50 GHz
Center Contact Plating	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Dielectric Material	Polyphenylene Oxide (PPO)
Mating Cycles	500
Temperature Range - Operating	-55°C ~ 100°C
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4010
Win Source Part Number	1477800-SM3010
Ultra Librarian 3D Model	Ultra Librarian SM3010 CAD Model
