131-3701-261

Part No 131-3701-261
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF)

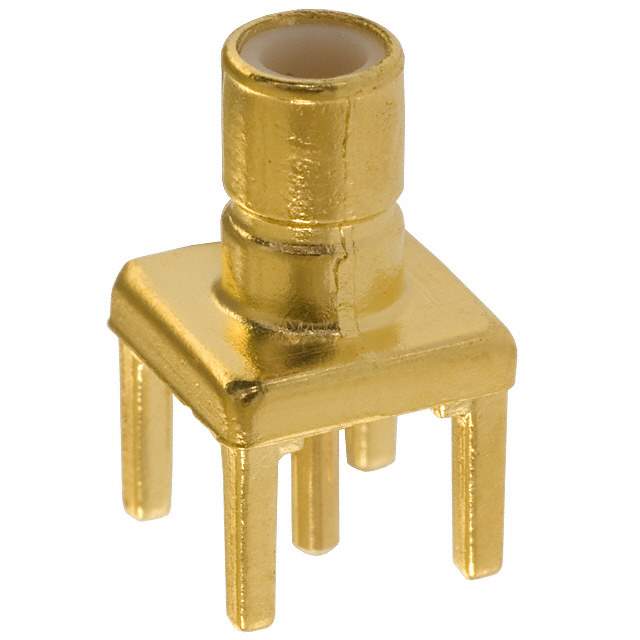

Description CONN SMB JACK STR 50 OHM PCB
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Cinch Connectivity Solutions Johnson
Packaging Bulk
Status Active
Connector Style SMB
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting Through Hole
Fastening Type Snap-On
Maximum Input Frequency 4GHz
Housing Color Gold
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C to 165°C
Center Contact Material Brass
Voltage Rating 335V
Mating Cycles 500
Win Source Part Number 038785-131-3701-261
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 131-3701-261 CAD Model

Description

Description

The 131-3701-261 is a premium electronic connector that delivers excellent performance in both commercial and industrial settings. Designed to provide a reliable connection, this component is ideal for high-frequency applications.

Features and Benefits

  • Superior contact resistance for efficient signal transmission.
  • Temperature resilience for operation in extreme conditions.
  • Compact footprint suitable for tight spaces.
  • Corrosion-resistant materials extend product lifespan.

Applications and Projects

  • Broadcast communication devices.
  • Data networking systems.
  • Medical equipment instrumentation.
  • Renewable energy solutions.
